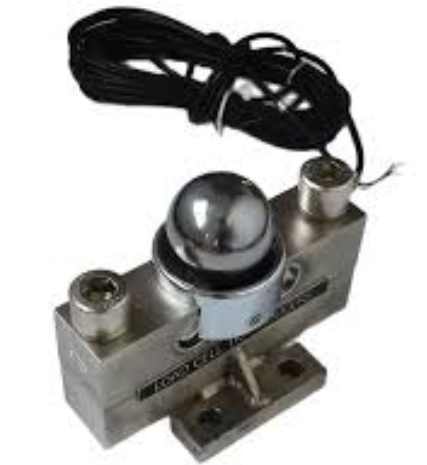

KELI QS-D Load Cell
ManufacturerKELI(View more products from this manufacturer)
ModelQS-D
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
FEATURES:
●Capacity: 5t to 50t
●Steel ball loading, strong restoration ability
●Easy complete installation, high weighing accuracy
●OIML C3 certificate
●Alloy Steel
APPLICATION:
●Truck scale
●Railway scale
●Blending scale and all kinds of weighing apparatus
| Rated capacity: 5ton to 50ton | Operating temperature range: -30 to +70℃ |
| Rated output:2.0±0.002mv/v | Maximum safe overload； 150% OF R.C |
| Combined error： ±0.03% F.S | Ultimate safe overload； 200% OF R.C |
| Non-repeatability： ±0.02% F.S | Recommended Excitation； 10 to 12V DC |
| Non-linearity： ±0.02% F.S | Maximum Excitation； 15V DC |
| Hysteresis error： ±0.02% F.S | Environment protection: IP68 |
| Zero balance: ±1% F.S | Input impedance: 750±10Ω |
| Creep error(30minutes): ±0.02% F.S | Output impedance: 702±3Ω; 703±5Ω(cable≥15m)； |
| Temperature effect on zero: ±0.02% F.S | Insulation resistance at 50V DC: ≥5000MΩ |
| Temperature effect on output: ±0.02% F.S | Material: nickel-plated alloy steel； |
| Compensated temperature range: -10 to +40℃ | Cable length: 5.2meter(5t);8meter(10t); 10meter(15t);10/12meter(20t);12/16meter(25t~50t),diameter 6mm |
