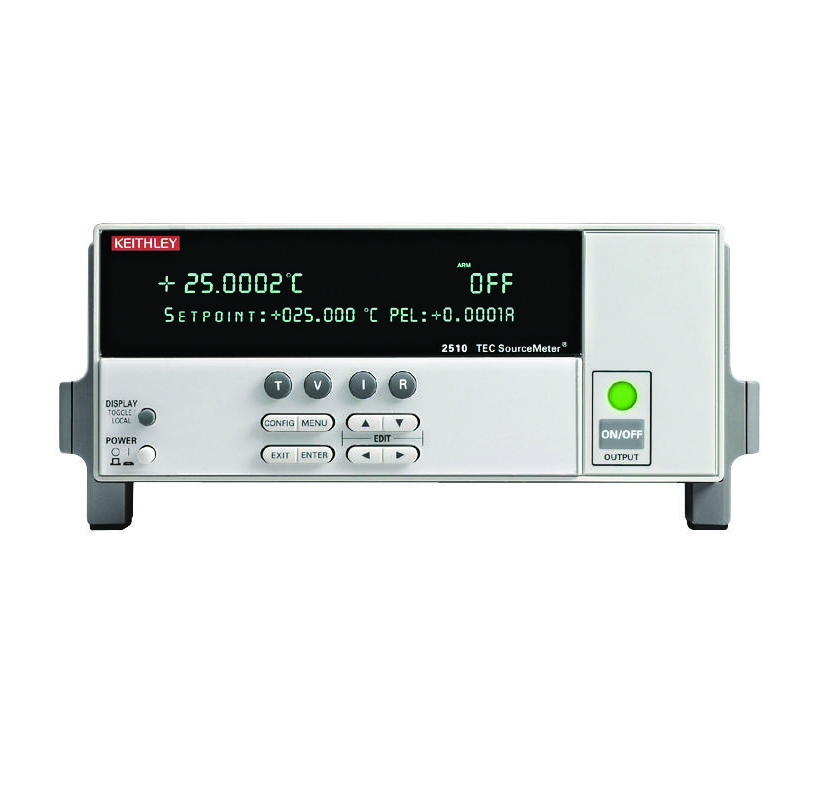

KEITHLEY 2510-AT Autotuning TEC SourceMeter Instrument (5A, 10V, 1CH, 50W)

Current source: 5A

Voltage source: 10V

Number of SMU channels: 1

Power: 50W

Weight: 13.6 kg

Dimensions: 89mm W × 213 mm H × 370mm D.

Control system specifications

Set: constant peltier temperature, constant peltier voltage, constant peltier current. Constant thermistor resistance.

Control method: programmable software pid loop. Proportional, integral, and derivative gains independently programmable.

Setpoint short term stability: ±0.005°c rms

Setpoint long term stability: ±0.01°c

Setpoint range: –50°c to 225°c.

Upper temperature limit: 250°c max.

Lower temperature limit: –50°c max.

Setpoint resolution: ±0.001°c, <±400µv, <±200µa 0.01% of nominal (25°c) thermistor resistance.

Hardware current limit: 1.0a to 5.25a ±5%.

Software voltage limit:±0.5 to 10.5v ±5%.

Tec output specifications

Output range: ±10vdc at up to ±5adc

Output ripple: <5mv rms

Ac resistance excitation: ±(9.6ma ± 90µa)

Tec measurement specifications

Function: 1 year, 23°c ±5°c

Operating resistance: ±(2.0% of rdg + 0.1w)

Operating voltage: ±(0.1% of rdg + 4mv)

Operating current: ±(0.4% of rdg + 8ma)

Ac resistance: ±(0.10% of rdg + 0.02w)

Open shorted thermoelectric detection

Load impedance: stable into 1µf typical.

Common mode voltage: 30vdc maximum.

Common mode isolation: >10^9ω, <1500pf.

Max. Voltage drop between input/output sense terminals: 1v.

Max. Sense lead resistance: 1w for rated accuracy.

Max. Force lead resistance: 0.1ω

Sense input impedance: > 400kw.

Open/shorted element detection

Software linearization for thermistor and rtd

Common mode voltage: 30vdc

Common mode isolation: >10^9 ω, <1000pf.

Max. Voltage drop between input/output sense

Terminals: 1v.

Max. Sense lead resistance: 100ω for rated accuracy.

Sense input impedance: >10^8ω
