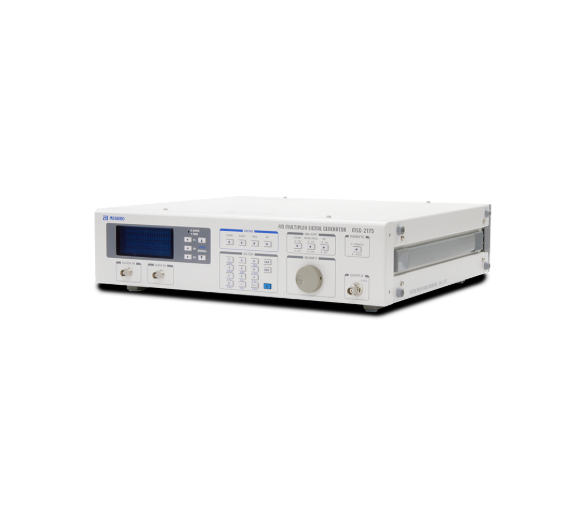

KEISOKU GIKEN MSG-2175Full FM Multiplex Signal Generator (DARC/RDS)

RF signal output:

Frequency range: 70MHz to 110MHz

Setting resolution: 100Hz

Frequency Accuracy: ±5×10⁻⁶

Output Level Range: -20 to 126 dBµV (EMF)

resolution: 0.1dB step

Output Level Accuracy: ±1.5dB

Output Impedance: 50 ohms

VSWR: 1.3 or less

Spurious High Frequency: -30dBc or Lower

Spurious non-high frequency: -40dBc or Lower

RDS:

Output Level Settings: 0.0 to 10.0% (0.1% step)

Subcarrier Frequency: 57kHz ±2Hz

Data Modulation Method: DPSK 1.1875kbps

External DATA, CLOCK input: TTL

Bit Error Code: PN9

record: 00 to 10 (00 fixed pattern)

DARC:

L-MSK Level Control: Auto/Manual switching

AUTO: Upper limit: 10.0%, Lower limit: 4.0%

MANUAL: 0.0 to 15.0% (0.1% step)

Subcarrier Frequency: 76kHz ±2Hz

Data Modulation Method: LMSK16kbps Frequency shift: ±4kHz

External DATA and CLOCK input: TTL

Bit Error Rate: PN9

record: 00 to 10 (00 fixed pattern)

Stereo Modulation:

Modulation Depth Setting Range: 0 to 125% (0.5% step)

Internal Modulation Frequency: 400Hz, 1kHz, 6.3kHz, 10kHz, 15kHz

Modulation Mode: OFF, L=R, L&R, L=-R, LEFT, RIGHT, MONO

Pre-emphasis: OFF, 25µs, 50µs, 75µs

degree of separation: 55dB >

S/N ratio: 74dB >

Pilot Signal: 19kHz ±1Hz

Output Level Settings: 0 to 15% (1% step)

Interface:

Serial Interface: RS-232C: D-sub 9pin (male), USB: Type B (female)

Parallel Interface: GP-IB (Compliant with IEEE Std. 488-1975)

General Specifications:

Power supply voltage: AC 90 to 240V, 50/60Hz

Power consumption: Max. 20VA (Full-featrued product)

External dimensions (excluding protrusions): Approx 420(W)×100(H)×370(D)mm

weight: Approx. 5kg

Operating Temperature Range: 0℃ to +40℃

Performance guaranteed temperature range: +10℃ ~ +35℃
