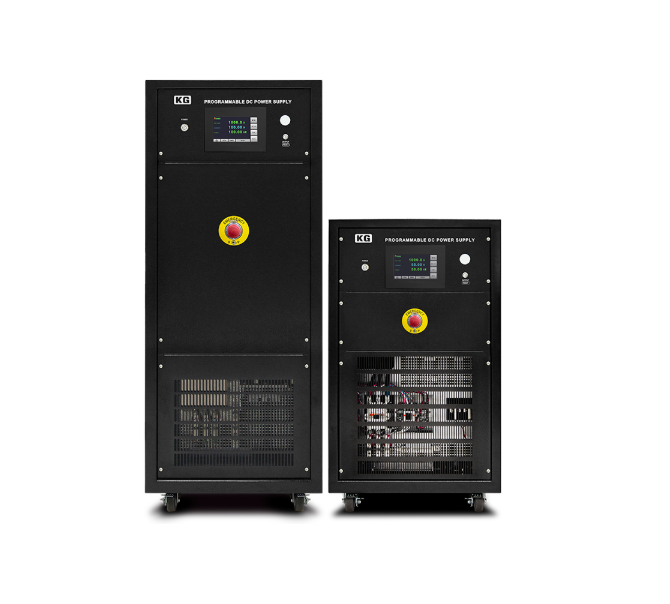

KEISOKU GIKEN ADG-PLUS-1000-75 High Capacity Programmable DC Power Supply (75kW; 1000V; 75 A)

Power supply: 75kW

DC Output:

DC Output Rating:

Output Voltage: 1000 V

Output current: 75A

Constant voltage mode (CV):

Setting accuracy: 0.1 % F.S.

Setting resolution: Below 100 V: 0.01 V; Over 100 V: 0.1 V

Input power fluctuation: Less than 0.05%

Load fluctuation *1: Less than 0.05 %

Transient response recovery time *2: 20 ms or less

Ripple Voltage (RMS)　 　 　　　: 0.1 % FS or less

Noise Voltage (Peak): 0.3 % FS or less

Rise time *3: 120 ms or less

Remote sensing Maximum compensation voltage: Compensates for voltage drops up to 2 % of the rated voltage

Constant Current Mode (CC):

Setting accuracy: 0.5% FS . (1% rated current or more)

Setting resolution: Below 100 A: 0.01 A; Over 100 A: 0.1 A

Constant Power Mode (CP):

Setting accuracy: P=V*I (calculated value)

Setting resolution: 0.01 kW

Measurement features:

DC voltage measurement:

Measurement accuracy: 0.1% F.S.

Resolution: Below 100 V: 0.01 V; Over 100 V: 0.1 V

DC current measurement:

Measurement accuracy: 0.5% FS . (1% rated current or more)

Resolution: Below 100 A: 0.01 A; Over 100 A: 0.1 A

DC power measurement:

Measurement accuracy: P=V*I (calculated value)

Resolution: 0.01 kW

General Specifications:

Power supply:

Input Rating: Three-phase three-wire GND

Input voltage/ frequency: AC 380 V to 400 V ±15 % / 47 to 63 Hz (option: AC 200 V/208 V/415 V/440 V/480 V)

Power factor (at maximum load): Over 90%

Efficiency (at maximum load): When the input voltage is 380 V to 400 V: 90 % or more; When the input voltage is 200 V/208 V/415 V/440 V/480 V: 87 % or more

Input power (three-phase, three-wire: AC 380 V): 100 kVA or less

Input current (three-phase, three-wire: AC 380 V): At maximum load: 150 A

Mass (Body only): 300 kg; Input voltage: 200V/208V/415V/440V/480V 574 kg

External dimensions (Casters included): W: 600 x H: 1038 x D: 800 [mm]; W: 600 x H: 1382 x D: 800 [mm] (Input voltage: 200 V/208 V/415 V/440 V/480 V)
