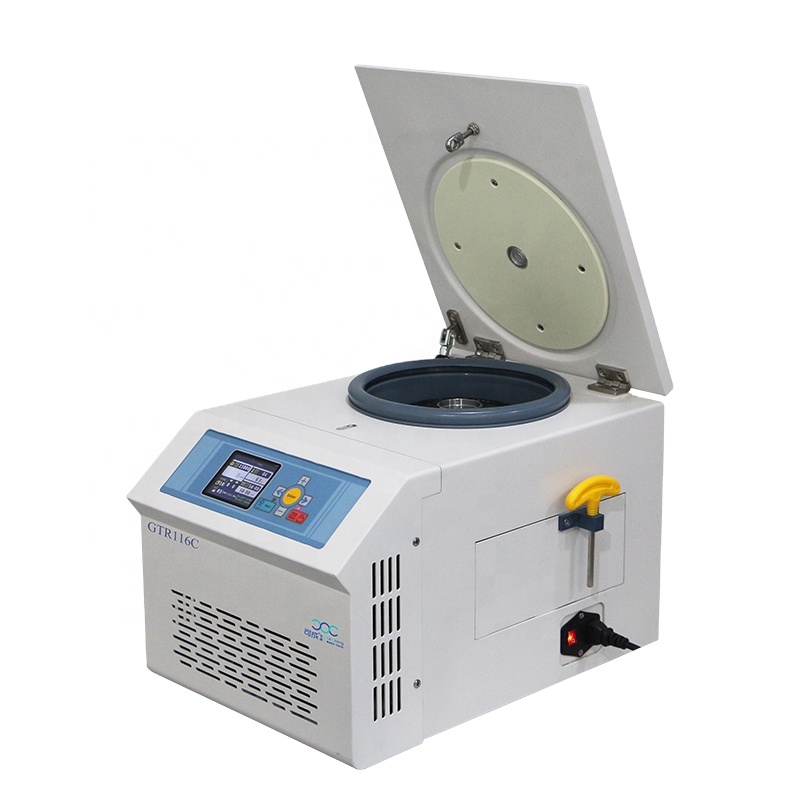

KECHENG GTR116C High Speed Table Refrigerated Centrifuge (16500rpm)

Technical Parameter：

Max Speed: 16500rpm

Voltage: AC 220±22V 50Hz 10A or custom

Max RCF: 21615×g

Power: 550W

Max Capacity: 12×5ml

Noise Level: ≤ 60dB（A）

Timer: 1s～99min59s

Size: 460×335×330 (mm)

Revolutions/min: ±10r/min

Net Weight: 48kg

Temp Range: -20℃～40℃

Rotor automatic recognition: Yes

Temp Accuracy: ±1.0℃

Rotor parameters：

Angle rotor 1: Capacity: 16×1.5/2.0ml; Max Speed（r/min): 16500rpm; Max RCF(×g): 20880×g

Angle rotor 2: Capacity: 12×5ml; Max Speed（r/min): 15000rpm; Max RCF(×g): 18036×g

Angle rotor 3: Capacity: 24×1.5/2.0ml; Max Speed（r/min): 15000rpm; Max RCF(×g): 21615×g

Angle rotor 4: Capacity: 4×8×0.2ml PCR Row; Max Speed（r/min): 15000rpm; Max RCF(×g): 14866×g

Angle rotor 5: Capacity: 8×8×0.2ml PCR Row; Max Speed（r/min): 14000rpm; Max RCF(×g): 15032×g

Angle rotor 6: Capacity: Capillary rotor 24 hole; Max Speed（r/min): 12000rpm; Max RCF(×g): 13845×g
