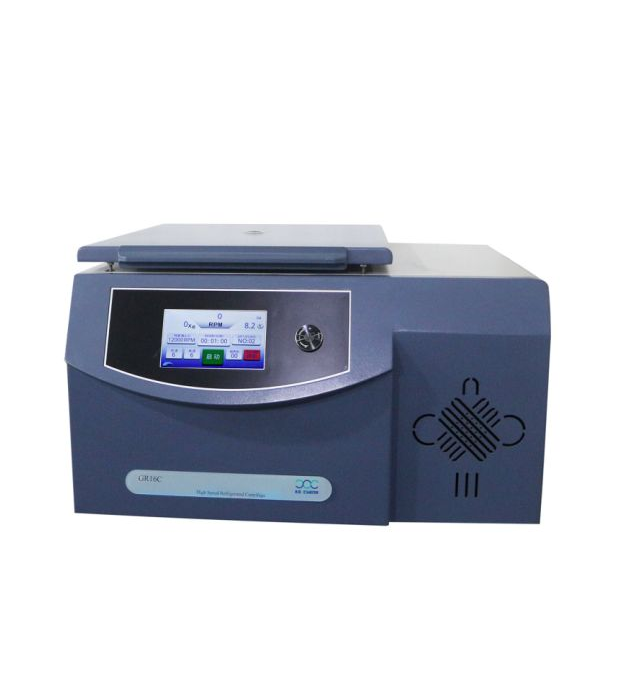

KECHENG GR16C High Speed Table Refrigerated Centrifuge (16000rpm)

Max Speed: 16000rpm

Max RCF: 27762×g

Max Capacity: 4×1000ml

Timer: 1s~99h59min59s

Revolutions/min: ±10r/min

Temp Range: -20℃~40℃

Temp Accuracy: ±1.0℃

Voltage: AC 220±22V 50Hz 20A

Power: 2300W

Noise Level: 65dB（A）

Size: 770×710×490mm

Net Weight: 143Kg

Rotor automatic recognition: Yes

Rotor parameters：

Angle rotor 1: Capacity: 48×1.5/2.0ml（Double row ; Max Speed（r/min): 16000rpm; Max RCF(×g): 27762×g

Angle rotor 2: Capacity: 30×1.5/2.0ml（Single row）; Max Speed（r/min): 15500rpm; Max RCF(×g): 26859×g

Angle rotor 3: Capacity: 18×5ml（Single row）; Max Speed（r/min): 15000rpm; Max RCF(×g): 22010×g

Angle rotor 4: Capacity: 8×50ml(Conical/round bottom); Max Speed（r/min): 12000rpm; Max RCF(×g): 18160×g

Angle rotor 5: Capacity: 6×100ml; Max Speed（r/min): 11000rpm; Max RCF(×g): 14745×g

Angle rotor 6: Capacity: 12×50ml (Conical/round bottom); Max Speed（r/min): 10000rpm; Max RCF(×g): 15383×g

Angle rotor 7: Capacity: 6×250ml; Max Speed（r/min): 10000rpm; Max RCF(×g): 15093×g

Swing-out rotor 8: Capacity: 4×1000ml; Max Speed（r/min): 4200rpm; Max RCF(×g): 3940×g

Adapter 8(a): Capacity: Micro-plate bucket 4×2×96 hole; Max Speed（r/min): 4200rpm; Max RCF(×g): 3940×g

Adapter 8(b): Capacity: 4×10×50ml (Conical/round bottom); Max Speed（r/min): 4200rpm; Max RCF(×g): 3940×g

Adapter 8(c): Capacity: 4×24×15ml (Conical/round bottom); Max Speed（r/min): 4200rpm; Max RCF(×g): 3940×g

Adapter 8(d): Capacity: 4×750ml(Round bottom); Max Speed（r/min): 4200rpm; Max RCF(×g): 3940×g

Adapter 8(e): Capacity: 4×500ml(Round bottom); Max Speed（r/min): 4200rpm; Max RCF(×g): 3940×g

Adapter 8(f): Capacity: 4×500ml /Sharp bottom; Max Speed（r/min): 4200rpm; Max RCF(×g): 3940×g

Adapter 8(g): Capacity: 4×250ml /Sharp bottom; Max Speed（r/min): 4200rpm; Max RCF(×g): 3940×g

Adapter 8(h): Capacity: 8×250ml /Round bottom; Max Speed（r/min): 4200rpm; Max RCF(×g): 3940×g

Adapter 8(i): Capacity: 140×10ml(Blood collection tube）; Max Speed（r/min): 4200rpm; Max RCF(×g): 3940×g

Adapter 8(j): Capacity: 196×2-7ml(Blood collection tube）; Max Speed（r/min): 4200rpm; Max RCF(×g): 3940×g
