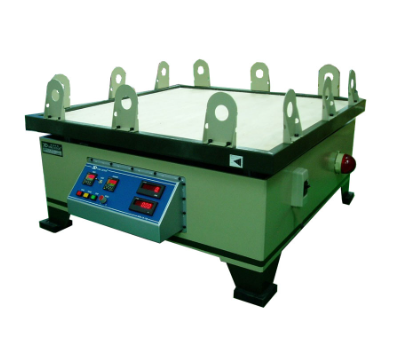

KDI 9363-LN-100 Large-Displacement Low-Frequence Vibration System (100 x 100 cm, 120 ~ 300 r.p.m)

Equipment dimension: 110 (W) x 120 (D) x 65(H) cm

Weight: About 350 kg

Power requirement: AC 220V 1f, 15A

Type of movement: Driven by motor & cam

Platform size: 100 x 100 cm

Platform material: 3/4”wooden plate

Amplitude: 25.4 mm / 1 inch

Speed limit: 120 ~ 300 r.p.m

Frequency limit: 2.00 ~ 5.00 Hz

Acting time: 80min/single-cycle continuous run

Beating times: 14500 beat/ single-cycle continuous run

Noise level: <74 dB/5Hz/A weighted

Accuracy-holding condition: Temperature: 23°C±5°C/RH: <80%RH(non-condensed)
