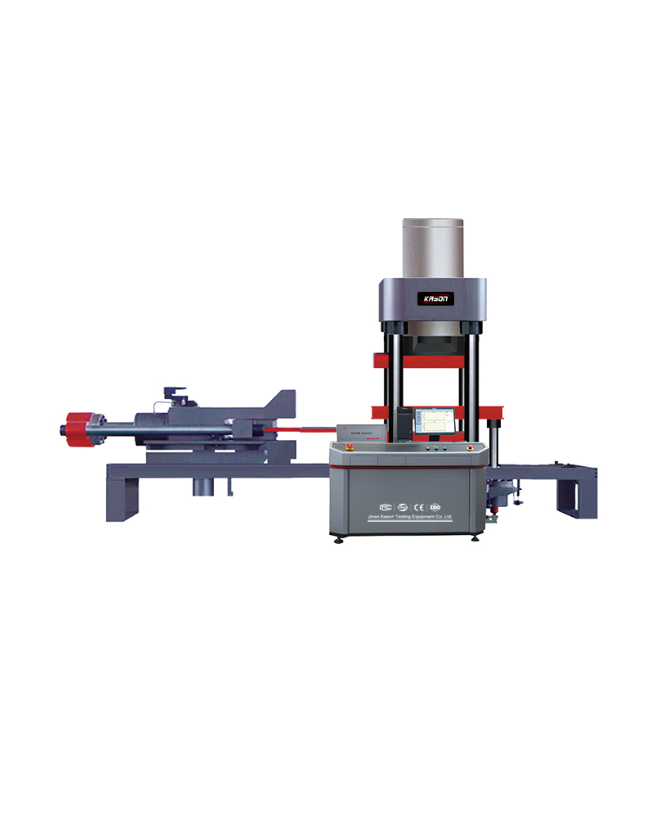

Kason YJW-5000 Computer Controlled Elastomeric Bearing Testing Machine (20 – 5000KN)

Test Force Range(KN): 20-5000

Test Force Accuracy (%): ± 1% (0.4%-100%F.S.)

MaxTest space (mm)

Top Cylinder: 800

Bottom Cylinder: 900

Piston lifting adjust speed(mm/min): 0～30

Working piston max stroke (mm)

Top Cylinder: 800

Bottom Cylinder: 80

Displacement test accuracy(F.S): ±1%

Displacement resolution(mm): 0.003

Lower platen size(mm): 1450*1450*450

Power: AC380V±10%

The shear modulus test mechanism

Horizontal shear force(KN): 1000

Indication accuracy: ± 1% (1% - 100% F.S.)

Working piston advancement speed: 0-50 mm/min (adjustable)

Horizontal Piston Stroke(mm):

Top Cylinder: 200

Bottom Cylinder: 190

The corner test mechanism (optional accessory)

Coner Push Force(KN): 300

Indication accuracy: ± 1%

Working piston advancement speed adjustable (mm/min): 0-60

Working piston maximum stroke: 150

Dimension

Main frame dimension(mm)

Top Cylinder: 4750x1310x3540

Bottom Cylinder: 5100x1200x2900

Hydraulic oil source(mm): 1352x758x1030

Control cabinet shape(mm): 1700x880x930
