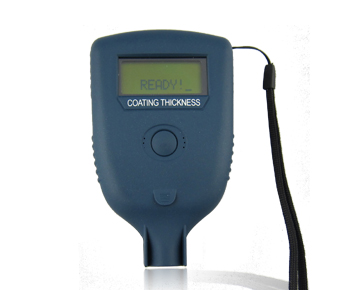

Kason KS200 Double-use Coating Thickness Gauge (0~1250 μm)

Measuring Range: 0~1250 μm

Measurement accuracy: (±3%H+1μm)

Display accuracy: 1 μm

Min. measurement area: 10μm * 10μm

Min. Base thickness:

Fe: 0.2mm

NFe: 0.05mm

Minimum Curvature:

Convex curve radius: 5mm

Concave curve radius: 25mm

Display: LCD

Power: Four 7th battery

Weight: 82g without battery

Working temperature: -10℃ ~ +60℃

Dimension: 112*69*28mm (Host)

Datasheet

Main features:

Ruby wear-resisting prole: The wear resistance of probe contact point affects the accuracy of measurement directly. Ordinary metal contact probe, after its surface wear will bring great error .

Probe and the host hold in one piece .

One button set Zero, calibration, measuring and all operations .

Widely used in manufacturing, metal processing industry, chemical industry, commodities inspection, and other test areas.

Particularly suited to engineering field measurement.

Durable, widely used, one-handed operation .
