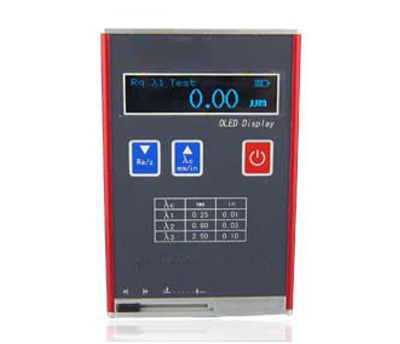

Kason KS 100 Surface Roughness Gauge (Ra: 0.05 ~ 10.0, Rz: 0.1 ~ 50)

Testing parameters (µm ): Ra, Rz

Stroke length (mm): 6

Sample length (mm): 0.25, 0.80, 2.50

Evaluation length (mm): 1.25, 4.0, 5.0

Measuring range (µm ):

Ra: 0.05 ~ 10.0

Rz: 0.1 ~ 50

Error: ±10%

Variability: <12%

Contacting pin round diameter: 10 µm±1 µm

Battery: 3.7V Li

Datasheet
