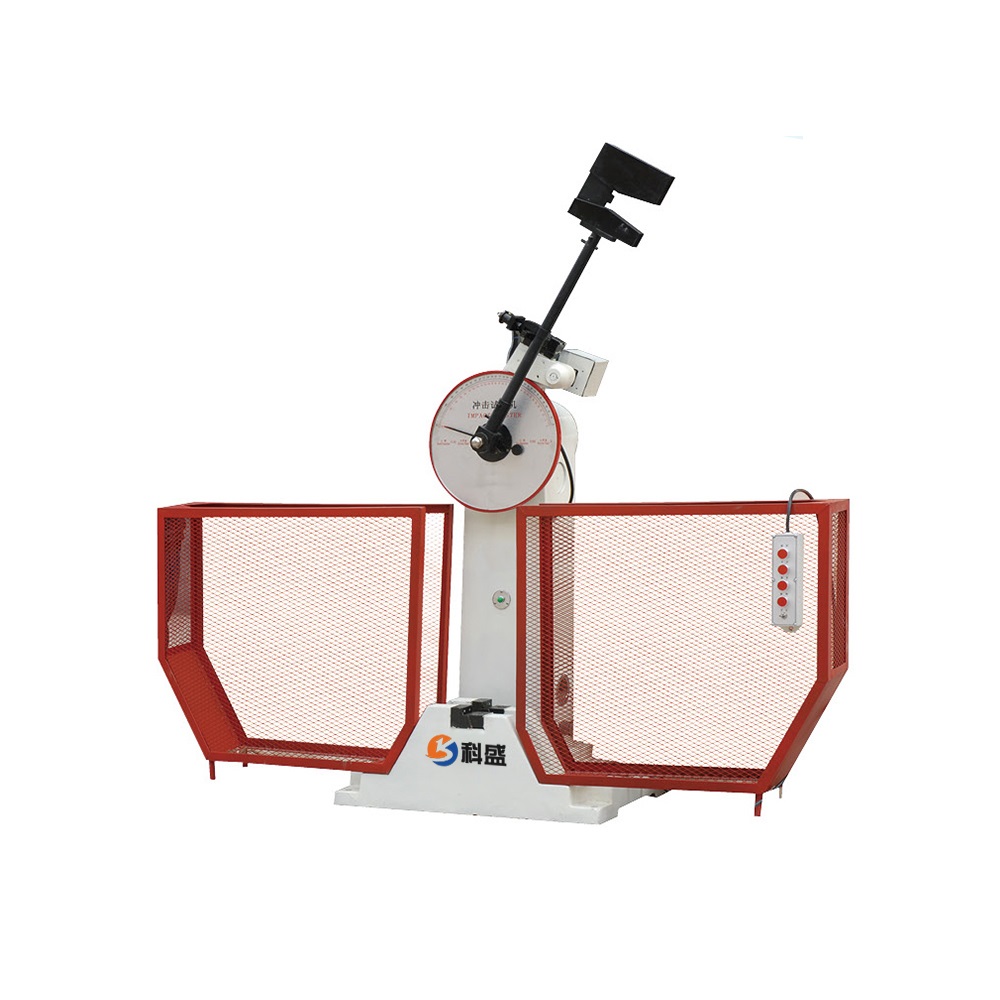

Kason JB-300 Manual Charpy Impact Testing Machine (150 J, 300 J)

Impact Energy: 150 J, 300 J

The Distance Between The Pendulum Shaft And Impact Point: 800 mm

Impact Speed: 5.2 m/s

Pre-rising Angle Of The Pendulum: 135°

Specimen Bearer Span: 40+0.2 mm

Round Angle Of The Jaw: R 1.0~1.5 mm

Round Angle Of Impact Edge: R 2.0~2.5 mm

Thickness Of Impact Blade: 16 mm

Angle Accuracy: 0.1°

Standard Specimen Dimension: 10 mm * 10(7.5 or 5) mm * 55 mm

Dimensions (mm): 1000 * 630 * 1520 mm

Net Weight (kg): 320 KG
