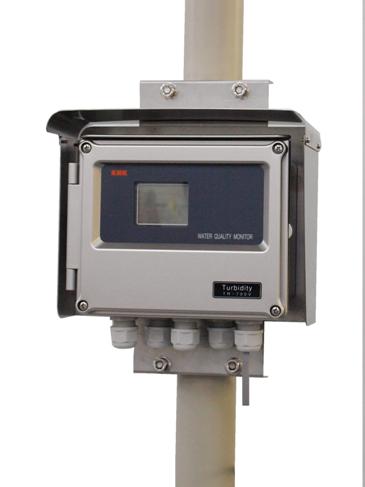

KASAHARA TR-700V Field-mounted turbidity meter (0~2000°C)

Measuring principle: Near-infrared pulse transmitted light measurement method (optical path length: 30 mm)

Indication: LCD 4-digit (with backlight)

Units of measurement:

(1) Kaolin turbidity standard: degree (mg/L)

(2) Formazine turbidity: FTU (optional)

Measurement Criteria:

(1) 0~2000°C(mg/L)(Stndard)

(2)0~2000FTU (Optional)

Resolution: 1mg/L (or FTU)

Span Calibration:

2nd standard: Simple span calibration plate (standard included)

1st standard: Turbidity standard solution

Representations: Within 3% ± span (depending on standard solution)

Power supply voltage: AC85～240V 50／60Hz

Power Consumption: Approx. 10VA or less

Ambient conditions:

Temperature: -5~45°C

Humidity: 85%RH or less

Dimensions & Weight:

Instrument body: 215×170×95, Approx. 1.75kg (with mounting plate)

With hood: 244×196×105, Approx. 2.5kg (with mounting plate)

Standard Configurations: Instrument body (with mounting plate), immersion detector, Simple Span Calibrator (2nd standard), instruction manual
