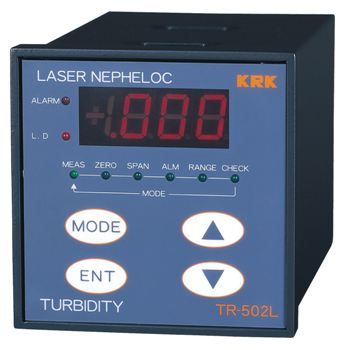

KASAHARA TR-502L Laser scattered light type turbidity meter (0.000 ~ 1.999)

Measurement method: Laser scattered light measurement method

Display: LED 3/1/2 digit digital display

Measuring range: 0.000~1.999

Minimum resolution: 0.001 degree

Reproducibility: ±2% (FS) or less: By standard solution

Power source: 　AC 85~240V 50/60Hz

Power Consumption: Approx. 10VA

Measured water conditions:

Temperature: 0~40°C

Inflow pressure: Approx. 0.1~0.5MPa Discharge flow rate: Approx. 0.05L/min or more

Ambient conditions:

Temperature: -5~40°C (non-freezing) Humidity: 85% RH or less (non-condensing)

Gas: No corrosive gases
