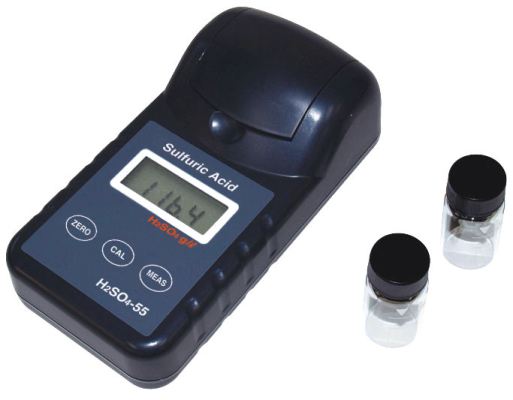

KASAHARA H2SO4-55 Sulfuric acid meter (0．0～199．9g/L)

Measurement Targets: Sulfuric acid concentration in copper sulfate plating bath

Measurement Equation: Spectrophotometry

Measurement Criteria: 0．0～199．9g/L

Presentation Resolution: 　0.1g/L

Repeatability: ± within 5% (FS)

Response Time: 5 seconds after power ON

Automatic power off: Hold the measured value for 5 seconds, then auto power off

Measurement time: About 1 minute each time

Self-diagnostic function: Battery voltage, poor calibration, LED degradation

Calibration: Perform zero calibration and span calibration before measuring.

Power: AAA alkaline batteries (LR03×4) DC6V

External dimensions: 88（W）×174（D）×65（H）mm

Weight:Approx. 310g

Standard Configurations: Instrument body, alkaline batteries, 3 measuring cells, measuring reagent H2SO4-RA 500mL

span calibration cell x1, dropper (for 5mL), micropipette (for 0.1mL), instruction manual, warranty card, carrying case
