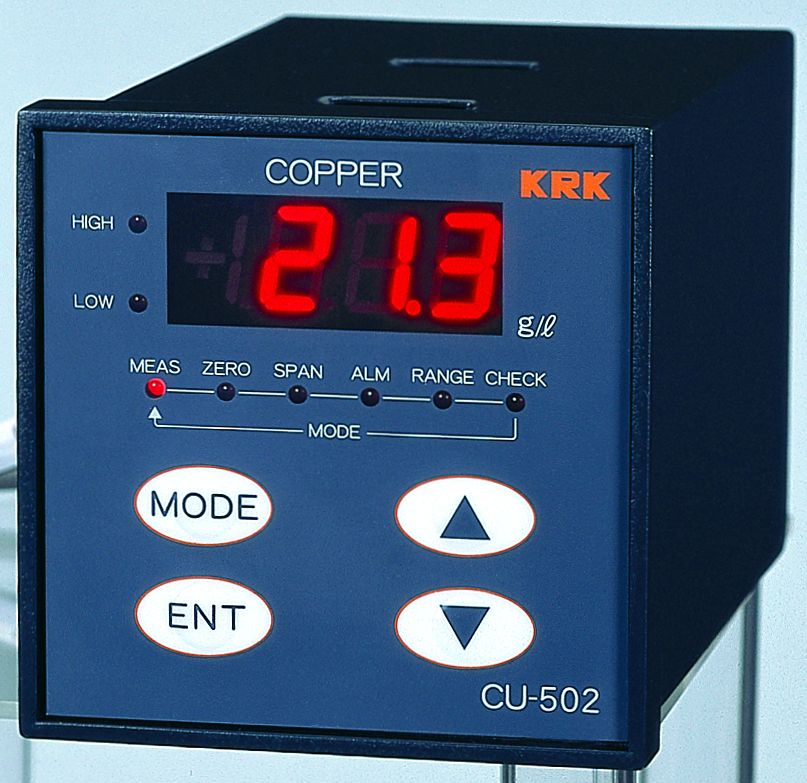

KASAHARA CU-502 Copper density monitor of the plating solution (0 ~ 300 g/l)

Measurement target: Copper concentration in solution

Measurement method: AC lighting type Spectrophotometry

Indication: LED Red 3 digits (or 4 digits)

Measuring range:

Cu High concentration

(1): 0 ~ 20 g/l

(2): 0 ~ 50 g/l

(3): 0 ~ 80 g/l

Low concentration

(1): 0 ~ 5 g/l

(2): 0 ~ 10 g/l

(3): 0 ~ 20 g/l

CuSO4

(1): 0 ~ 100 g/l

(2): 0 ~ 200 g/l

(3): 0 ~ 300 g/l

Resolution:

Cu High Concentration: 0.1g/l

Low Concentration: 0.01g/l

CuSO4: 1g/l

Reproducibility: Within ±2%

Response Time: Within 5 seconds

Ambient temperature: -5°C~40°C 85%RH or less

Power: AC85V~240V-free power supply

Power Consumption: Approx. 10VA

External dimensions: 96（H）×96（W）×163（D）

Weight: Approx. 1.3kg
