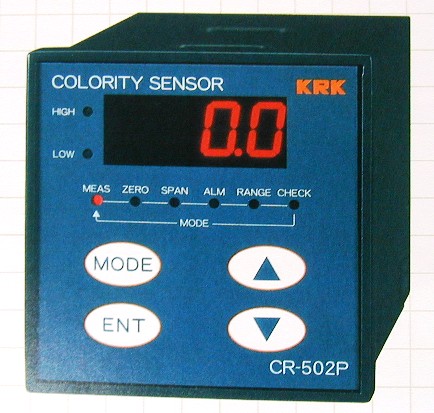

KASAHARA CR-502P Flow type Industrial Process Monitor (660nm)

Measurement target: Concentration of highly concentrated liquids in various processes

Measuring principle: Spectrophotometry

Measurement wavelength: 660nm standard

Measuring range: Specified according to the type and concentration of the liquid

Resolution: Depends on the measuring range

Alarm contact point: Upper and lower upper limit A and B contacts (no voltage),

contact capacity AC200V 1A or less

Hold Output: Hold out current output and contact output with external non-voltage contact signal input

Power: AC85～240V 50／60Hz

External dimensions: 96（W）×96（H）×163（D）mm

weightApprox. 1.3kg

Standard Configurations: Meter, detector, panal fixer, instruction manual, written guarantee

Datasheet
