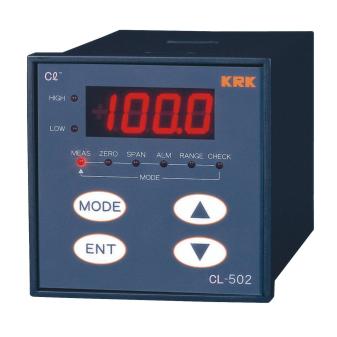

KASAHARA CL-502 Chlorine Ion Meter (10 ~ 1000mg/L)

Measuring principle: Solid membrane chlorine ion electrode method

Indication: LED Red 3/1/2 digit

Measuring range: 10~1000mg/L (1000mg/L or more can be specified)

Minimum display digits: 1mg／L

Reproducibility: ±2% (FS) or less (with equivalent input)

Temperature Compensation: Automatic temperature compensation with semiconductor temperature elements

Calibration function: Zero/Span Capability

Power supply voltage: AC85～240V 50／60Hz

Power Consumption: Approx. 7VA or less

Ambient conditions:

Temperature: 0~40°C

Humidity: 85%RH or less

External dimensions: 96（W）×96（H）×163（D）

Weight: Approx. 1.3kg

Standard Configurations: Instrument body, chlorine ion detector, PP holder (1m standard),

sandpaper, cleaning beaker, panel mounting device, chlorine ion standard solution (10 ppm, 1000 ppm), ion strength adjuster, calibration container, instruction manual, warranty card
