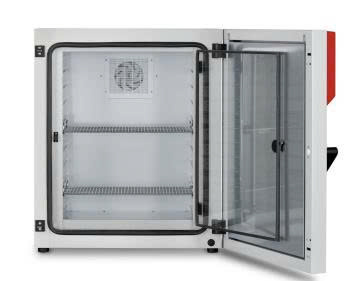

Karg KT170 Cooling Chambers (+4 ~100°C, 0.8kW)

Performance Data Temperature

Temperature range [°C]: +4...100

Temperature variation at 37 °C [± K]: 0.4

Temperature fluctuation at 37 °C [± K]: 0.1

Recovery time after 30 seconds door open at 37 °C [min]: 3

Electrical data

Rated Voltage [V]: 200…240

Power frequency [Hz]: 50/60

Nominal power [kW]: 0.8

Unit fuse [A]: 10

Phase (Nominal voltage) [ph]: 1~

Outer dimensions

Width net [mm]: 860

Height net [mm]: 1025

Depth net [mm]: 655

Wall clearance back [mm]: 100

Wall clearance sidewise [mm]: 240

Doors

Inner doors: 1

Unit doors: 1

Internal Dimensions

Width [mm]: 600

Height [mm]: 765

Depth [mm]: 355

Further Dimension

Interior volume [L]: 163

Net weight of the unit (empty) [kg]: 102

permitted load [kg]: 120

Load per rack [kg]: 30

Environment-specific data

Energy consumption at 25 °C [Wh/h]: 80

Energy consumption at 37 °C [Wh/h]: 80

Sound-pressure level [dB(A)]: 48

Fixtures

Number of shelves (std./max.): 2 / 10
