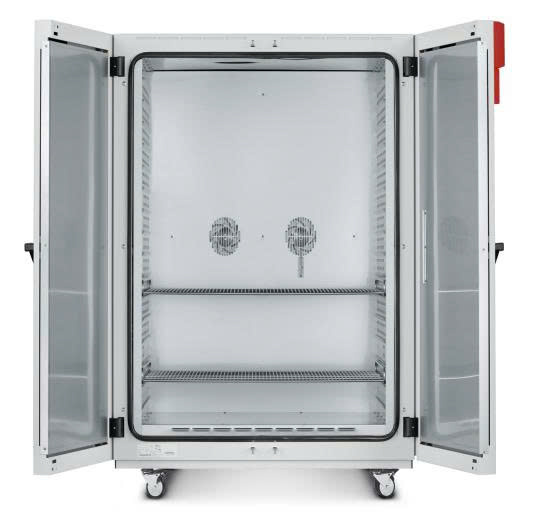

Karg FED720 Drying and heating chambers (12°C - 300 °C, 4.5kW)

Performance Data Temperature

Temperature range 12°C above ambient temperature to [°C]: 300

Temperature variation at 150 °C [± K]: 2.0

Temperature fluctuation at 150 °C [± K]: 0.6

Heating-up time to 150 °C [min]: 25

Recovery time after 30 seconds door open at 150 °C [min]: 6

Electrical data

Rated Voltage [V]: 400

Power frequency [Hz]: 50 / 60

Nominal power [kW]: 4.5

Unit fuse [A]: 3x16

Phase (Nominal voltage) [ph]: 3~

Outer dimensions

Width net [mm]: 1165

Height net [mm]: 1590

Depth net [mm]: 870

Wall clearance back [mm]: 160

Wall clearance sidewise [mm]: 100

Doors

Unit doors: 2

Internal Dimensions

Width [mm]: 1000

Height [mm]: 1300

Depth [mm]: 570

Further Dimension

Interior volume [L]: 741

Net weight of the unit (empty) [kg]: 162

Permitted load [kg]: 315

Load per rack [kg]: 45

Environment-specific data

Energy consumption at 150 °C [Wh/h]: 800

Sound-pressure level [dB(A)]: 43

Fixtures

Number of shelves (std./max.): 2 / 16
