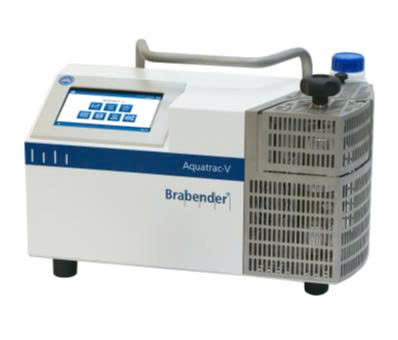

Karg Aquatrac V Moisture Meter (0.0001 – 60 % H2O, 60 - 200°C)

Technical characteristics

Measuring range [relative / absolute]: 0.0001 – 60 % H₂O / 0.01 – 60 mg H₂O

Precision [%] of measuring range end value: ±1.4

Resolution [mg/ppm/%H₂O]: 0.01 / 1 / 0.0001

Temperature range [C °]: 60 - 200

Sample weight [g]: from 0.1

Measurement time [min] depending on material: 10…60

Measurement result: mg, ppm, %

Interfaces: 3xUSB 2.0, 1xEthernet

Electrical data

Rated Voltage [V], depending upon model: 110/115/230 ± 10 %

Power frequency [Hz]: 50/60

Nominal power [W]: 450

Dimensions

Width net [mm]: 510

Height net [mm]: 325

Depth net [mm]: 230

Weight [kg]: 14.2
