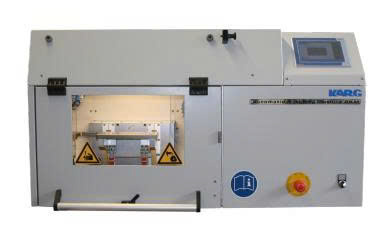

Karg AKM Notching Machines (51 mẫu thử, 1000-2000Upm)

Machine Data

Max. Number of test specimens to be notched: approx. 51 (at 4 mm specimen width)

Feed saw, adjustable [m/min.]: 0.3 - 1.8

Speed, adjustable [Upm]: 1000-2000

Notch speed, adjustable [(mm/sec)]: max. 500

Infeed depth Z axis (sample loader) [mm]: 0.001 - 0.3

Working length [mm]: approx. 200

Electrical data

Rated Voltage [V]: 230/110

Power frequency [Hz]: 50/60

Nominal power [kW]: 1

Dimensions

Width [mm]: 1200

Height [mm]: 700

Depth [mm]: 540

Weight [kg] approx.: 250
