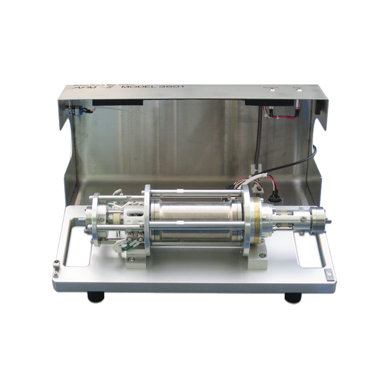

Kanomax APM 3602 Aerosol Particle Mass Analyzer (0.001~100fg)

Manufacturer: Kanomax

Model: APM 3602

Origin: Japan

Warranty: 12 months

- Main Unit Specifications:

Classification Method: Based on the balance between centrifugal power and electrostatic force

Particle Mass Range: Approx. 0.001 to 100 femtograms

(Equivalent to approx. 30 nm to 580 nm for particle density of 1g/cm3)

Rotation Speed: 1,000 to 14,000 rpm

Maximum Voltage: Up to 2,000 V

Double cylinder dimensions: Inner cylinder diameter: 48 mm, Gap between inner and outer cylinders: 1 mm, Cylinder length: 100 mm

Sampling Flowrate: 0.3 to 1.0L/min (0.3 L/min is recommended)

Dimensions: 16.93″ (W) x 7.87″ (L) 5.51″ (H) (430 mm (W) x 200 mm (L) x 140 mm (H))

Weight: Approx. 24.25 lbs. (11 kg)

- Control Unit Specifications:

Control Function: Rotation speed and applied voltage

Display Function: Applied voltage / Rotation Speed / Differential Pressure b/w inlet and outlet

Dimensions: 16.93″ (W) x 13.78″ (L) 5.51″ (H) (430 mm (W) x 350 mm (L) x 140 mm (H))

Weight: Approx. 17.64 lbs (8 kg)

Power supply: Single-phase AC100 to 240 V, 50/60Hz, 3A

- Features:

Desktop and lightweight unit

APM 3602 classifies aerosol particles of 0.01 to 100 femtograms

Particle density distribution can be attained by combining the APM and DMA

- Applications:

Mass distribution measurements

Particle density research

Monodisperse aerosol generation
