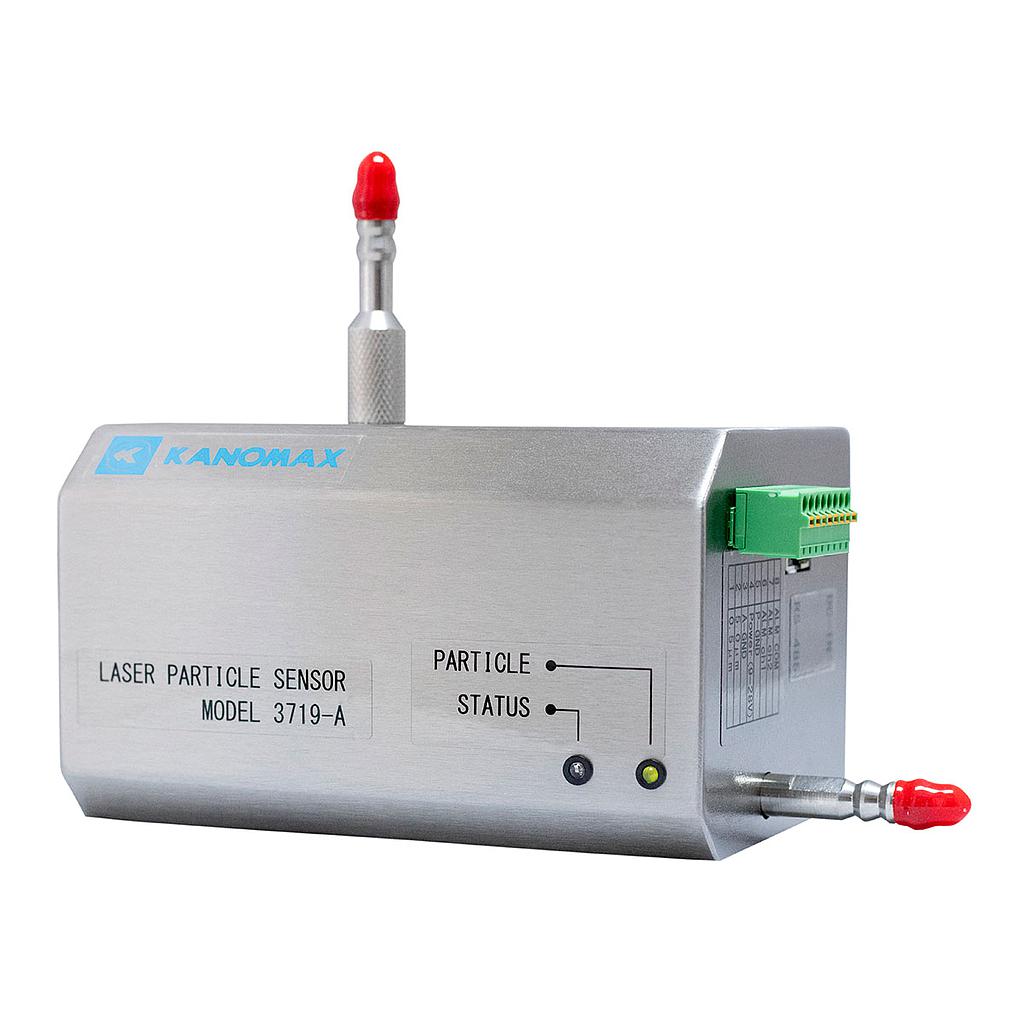

Kanomax 3719-A Remote Particle Sensor With Analog Output

Manufacturer: Kanomax

Model: 3719-A

Origin: China

Warranty: 12 months

- Particle Size Distribution: 0.5µm and 5.0µm

- Rated Flow: 28.3L/min (1CFM)

- Optical Source: Laser Diode

- Counting Efficiency: Compliant with ISO21501-4, JIS B 9921

- Max Detectable Concentration: 500,000CNT/ft3

- Setting Parameter:

+ Sampling Time: 1 to 60 seconds

+ Output Range Setting (To be configured for each particle size)

Count: 0-10CNT, 0-100CNT, 0-1,000CNT, 0-10,000CNT

Concentration: 0-10CNT/cf, 0-100CNT/cf, 0-1,000CNT/cf,

0-1,000,000CNT/cf

0-353CNT/ m3, 0-3,530CNT/m3,

0-35,300CNT/m3, 0-35,300,000CNT/m3

+ Alarm Setting: 0%-100%

+ Address Setting: 0-512

+ Error Output Setting: ON/OFF

- Sampling Pump: External vacuum>51kPa

- Interface: RS485, Analog Output (4-20mA)

- Communication: RS485

- Setting Software: Japanese, English

- Power Supply:

1.) DC Power Supply: DC 9V-28V

2.) AC Adapter: AC 100-240V (50-60Hz), DC 12V

- Operating Environment: 10~30°C, 20~85%RH (Non-condensing)

- Storing Environment: Temperature: -10 to 50°C, Humidity: 95%RH or less (Non-condensing)

- Dimension: 133mm (W) × 95mm (D)× 80mm (H)

- Weight: 1.0kg

- Standard Accessories: User’s Manual (English)(1), User’s Manual (Japanese) (1), AC adapter (1), Zero Filter (1), Adapter 1

(1), Adapter 2 (1), Tygon Tube 1 (1), Setting Software DVD - 3718/19-40 (1)

- Optional Accessories:

USB-RS485 Converter 3716A-20 (Converter + Converter Connecting Cable), Converter

Connecting Cable 3716A-21, RS232c-RS485 Converter 3716A-22 (Converter + Converter

Connecting Cable), Isokinetic Probe - 3905-07 (1), Isokinetic Suction Probe 3718-01 (1), Tygon

Tube 1 (1), Tygon Tube 2 (1)

- Features:

2-channel particle sensor with Modbus communication via RS485 interface

Flexible 4-20mA analog output (1.0 cfm unit only)

0.1 cfm and 1.0 cfm flow rates are available

Outputs particle counts, error status and alarm signal

Able to connect to a PLC or data logger for facility monitoring applications

Can be added to a process or building automation system

Fully compliant with ISO21501-4 calibration standard and JIS B9921

Configuration software is included for easy user parameter setup

Power can be provided via a network connection or AC adaptor

Stainless steel housing

3-year warranty included

- Applications:

Cleanroom Facility Monitoring

Food Industry

Aerospace

Hospital Surgical Rooms
