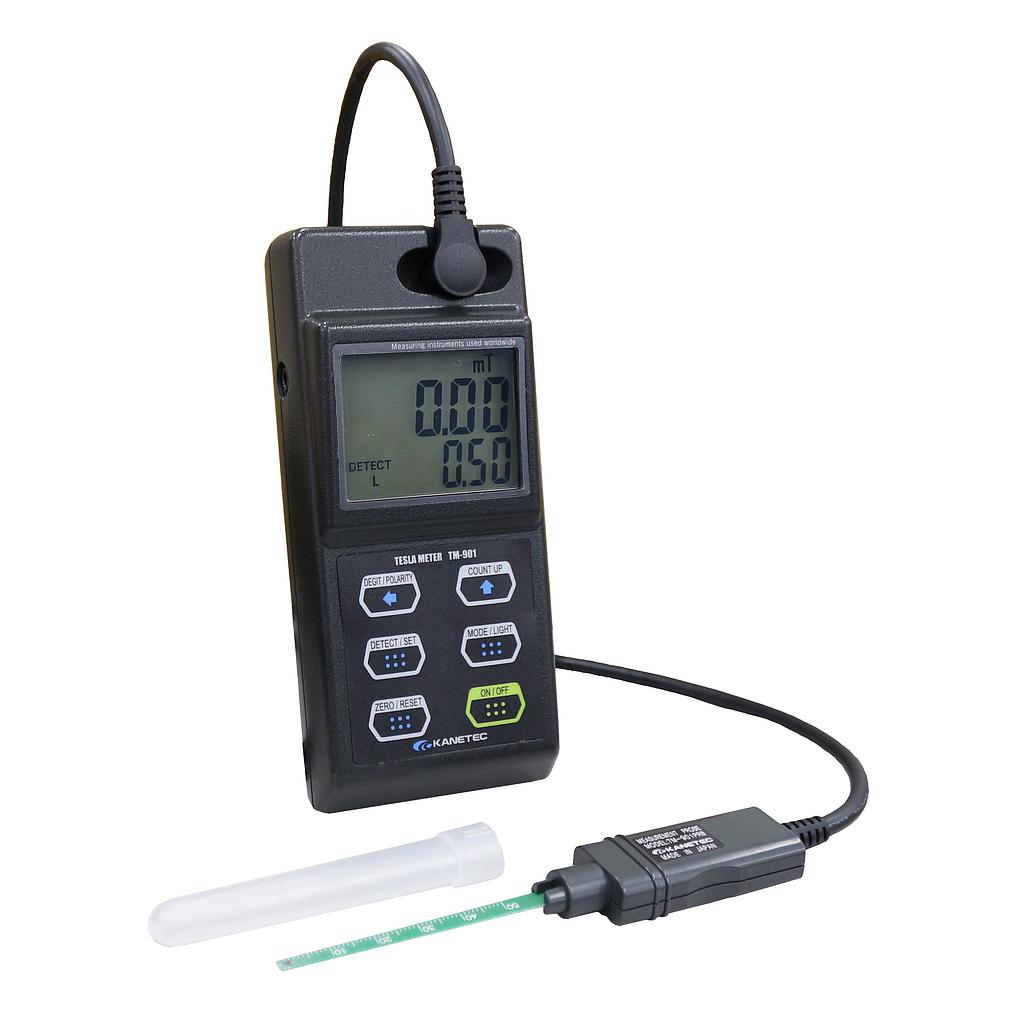

KANETEC TM-901EXP Tesla-Gauss Measurement

Object to detect:

- DC magnetic flux density Polarities (N, S)

- AC magnetic flux density 40-500Hz

Unit of measurement: mT/G selection

Measurement range: 0 - 3000.0mT

Measurement mode:

- DC X 1*:

+ Range: 0 - 200.0mT, Resolution: 0.1 mT, Indication accuracy: ±(5% of rdg.+ 3digit)

200.1 - 3000.0mT, Resolution: 1 mT, Indication accuracy: ±(5% of rdg.+ 10digit)

- DC X 10:

+ Range: 0 - 300.00mT, Resolution: 0.01mT, Indication accuracy: ±(3% of rdg.+ 5digit)

- AC*:

+ Range: 0 - 150.00mT, Resolution: 0.01 mT, Indication accuracy: ± (5% of rdg.+ 20digit)

150.1 - 300.0mT, Resolution: 0.1 mT, Indication accuracy: ± (5% of rdg.+ 20digit)

301.0 - 1500.0mT, Resolution: 1 mT, Indication accuracy: ± (5% of rdg.+ 20digit)

+ Indication accuracy: ± (5% of rdg.+ 20digit)

Function:

- Zero reset: Max. detect value hold

- Polarity judgment: Auto power off (Cancellable)

Output: Digital output (USB) / Analog output

Indication:

- Detected value: Digital

- Polarity: Alphabets (N/S)

Operating temperature: 0- +40°C (104°F)

Power Source:

- Battery: Size AA(1.5 V) X 4 pieces

- External power source 5 - 6 VDC(AC adapter / USB feed)

Dimensions: 143(5.62in)mm high x64(2.51in)mm wide x30(1.41in)mm thick

Mass: Approx. 250 g/0.62 lb (batteries & probe included)

Accessories: Probe, batteries, carrying case

Optional:

- Axial probe (TM-801AXL)

- Reference magnetic field(TM-SMF, TM-AMF)
