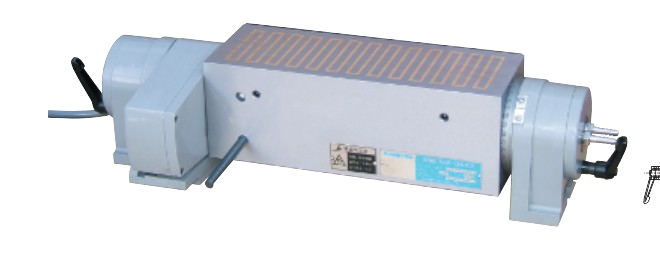

KANETEC SBC-1131UFR-C Tilt Type Water-Cooled Electromagnetic Sine Bar Chuck (110mm（4.33"）× 315mm（12.4"）)

Constructed to enable real-time internal cooling of heat generated when power is applied to the electromagnet, making these chucks suitable for higher precision grinding operation.

Nominal Size: 110（4.33）× 315（12.4）[mm(in)]

Work Face [mm(in)]

B1: 110 （4.33)

L1: 315 （12.4）

Le: 278 （10.9）

H1: 113 （4.44）

Pole Pitch [mm(in)]

P: 11（3＋8）0.43 （0.11＋0.31）

Mounting Face  [mm(in)]

L2: 492 （19.3）

Height [mm(in)]

Angle 0°,Min: 138 （5.43）

Cover fully open, Max: 210 （8.26)

Tilt Angle: ー15°‒ ＋45

Angle Accuracy: 0.007/100 max

Voltage: 90 VDC

Current: 0.3A

Mass: 36kg/ 79 lb
