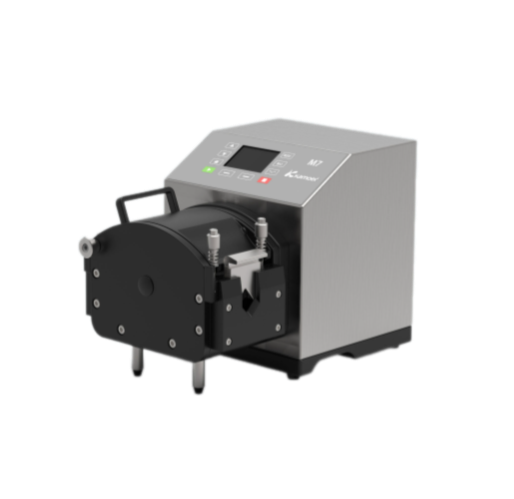

Kamoer M7 Intelligent peristaltic pump (33000ml/min in max)

Operating Voltage: AC 100-240V

Size: 270 × 479 × 315 (mm)

Weight: 31.7Kg

Power: ＜ 400 W

Speed range: 0.1~360rpm

Speed Control Resolution: 0.1rpm

Flow rate: ≤33 L/min

Motor type: DC servo motor

Motor life: ≥ 6000h

Working environment: Temperature 0℃～40℃, relative humidity ＜80%RH without condensation

Reference noise value: ≤80dB (at a distance of 0.5m)

Display method: 3.5" display

External control: Digital input, RS485

Mode setting: Manual mode, quantitative mode, calibration mode, Modbus-RTU mode

Tube material: Silicone tube

Tube size (mm):

88#：12.7 × 22.1

92#：25.4 × 35.0

189#：15.9 × 25.4

191#：19.0 × 28.5

Maximum speed (rpm): 360
