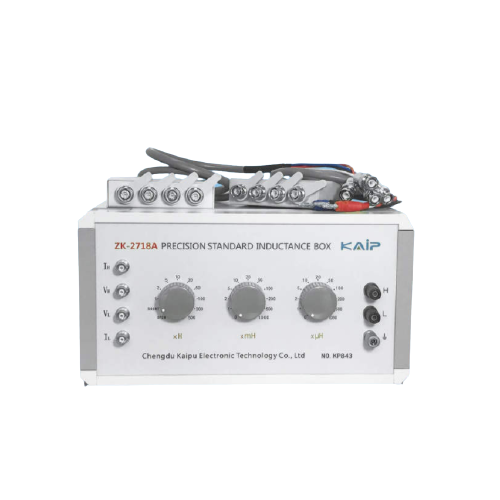

KAIP ZK-2718A Precision Standard Inductance Box (1μH~500H)

Operation conditions

Ambient temperature: (23±2) °C

Relative humidity: （50±10）%

1. Inductancerange:

1μH, 2μH, 5μH, 10μH, 20μH, 50μH, 100μH, 200μH, 500μH,

1mH, 2mH, 5mH, 10mH, 20mH, 50mH, 100mH, 200mH , 500mH, 1000mH,

1H, 2H, 5H, 10H, 20H, 50H, 100H, 200H, 500H

2. Zero-switchinductance: < 0.8μH

3. Error:

1μH～1000mH: ± (0.02%+0.05μH)

1H～500H: ±0.05%

4. Output mode: Three-terminal binding post output or Four-terminal BNC output

5. Calibration frequency/operating frequency (f):

1μH～1000mH: 1,000Hz

1H～500H: 100Hz

6. Maximum operating voltage (U): ≤50V

Datasheet

Features

ZK-2718A precision inductance box has 1, 2, and 5 alternating step sizes in inductance change and is currently an ideal standard inductance measuring instrument with a wide inductance range, high performance, good stability, small volume and light weight. It is suitable for measurement laboratories, research institutions, production, and particularly suitable for field calibration/verification of RLC measuring instruments and special inductance measuring instruments in factories, and has the following main features:

1.This inductance box is first time to combines network simulated inductor with toroidal-core inductor. It has high accuracy, small volume, light weight;

2.It has excellent electromagnetic shielding, vibration prevention and moisture proofing technique to provide extreme stabile performance;

3.The inductance range, calibration frequency and other special requirements can be customized according to user's requirements;
