Junray ZR-3715 Dual channel VOCs and flue gas sampler (10～200)mL/min; 60~130kPa)

Sampling flowrate of flue gas: Range: (10～200)mL/min, Resolution: 1mL/min, Error: ±2.5%

Dynamic pressure: Range: (0~2000) Pa, Resolution: 1Pa, Error: ±2.0%

Static pressure: Range: (-30-30) kPa, Resolution: 0.01kPa, Error: ±2.0%

Total pressure: Range: (-30-30) kPa, Resolution: 0.01kPa, Error: ±2.0%

Flue gas temperature: Range: (0~300)°C, Resolution: 0.1°C, Error: ±3.0°C

Atmospheric pressure: Range: (60~130) kPa, Resolution: 0.01kPa, Error: ±0.5kPa

Moisture: Range: (0~40)%, Resolution: 0.01%VOL, Error: ±2.0%

O2 content(optional): Range: (0~30)%, Resolution: 0.1%, Error: ±5.0%

Noise: 60dB(A)

Size: (L1455×W360×H275)mm

Host Weight: About 4kg

Power supply: DC24V/10A

Consumption: ≤150W

Product Detail

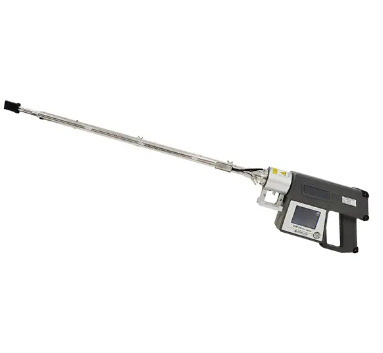

ZR-3715 uses resistance capacitance method to measure humidity in the chimney, and solid phase adsorption method to measure VOCs in the flue. It is a portable instrument that can measure the moisture, temperature, flow rate, dynamic pressure, static pressure, and other parameters of flue gas, as well as dual flue gas sampling.

Features

>  Integrated design, small size, light weight, easy to carry.

>  It can not only detect the moisture content of flue gas, but also measure two-way VOCs sampling.

>  Bright color touch screen, which can directly read data.

>  The pitot tube can be disassembled, moved, and rotated, making it easy to carry and suitable for various types of flue.

>  Built in RC humidity sensors, ensure high accuracy, good reliability, and response time less than 30s.

>  Read sampling data and historical data automaticly.

>  Measurable oxygen content (optional).

>  Printing data with external bluetooth printer (optional).
