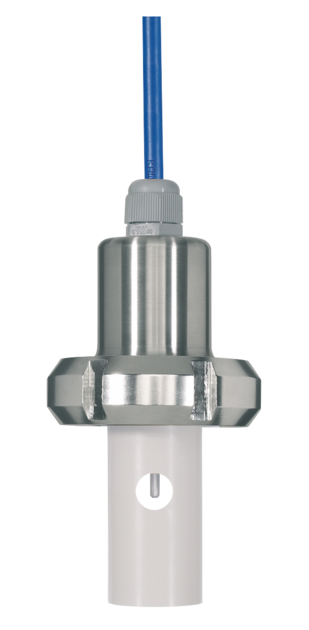

Jumo tecLine Ci-S Conductivity sensor for process technology (0 ~ 2000mS/cm)

Order code: 202942/10-607-0000-21-10/000

Measuring range of conductivity: 0 to 1000 µS/cm up to 0 to 2000 mS/cm (depending on the connected transmitter)

Basic type extension: PVDF sensor body

Process connection: Taper socket with union nut DN 50, DIN 11851 (dairy compression fitting)

Insertion length: Without

Electrical connection: Fixed cable with M12 connector

Length of fixed cable: 10 m

Extra code: Without

The sensor acquires the electrolytic conductivity of a process liquid. It uses the inductive measuring principle. An integrated temperature probe simultaneously acquires the process temperature.
