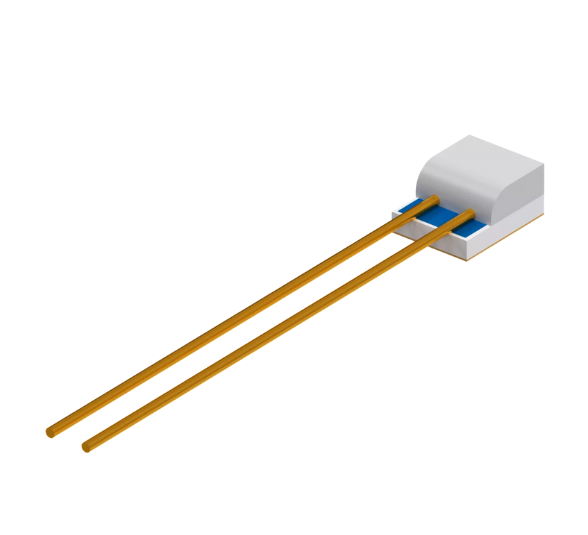

Jumo PCWRB-L-AuNi Platinum-chip temperature sensors (-50 ~ +250 °C, Part No.: 00722566)

Order code: 906139/0-1.7-2.2-1-100-10-1-030

Temperature range: -50 to +250 °C

Deviations possible depending on the type of mounting

Version: Standard

Width B: 1.7 mm

Length L: 2.2 mm

Height H: 1.0 mm

Nominal value of resistance R0: 100 Ω (Pt100)

Wire length L1: 10.0 mm (standard)

Type of packaging: Clamshell packaging (standard), packaging unit 100 pieces, loose

Tolerance class: F 0.3

Platinum chip temperature sensors of the PCWRB design type belong to the category of temperature sensors that were made using thin-film technology. The sensors are equipped with a solderable nickel-gold metallization on the back cover. The metal layer enables direct thermal contact with another body via a solder connection.
