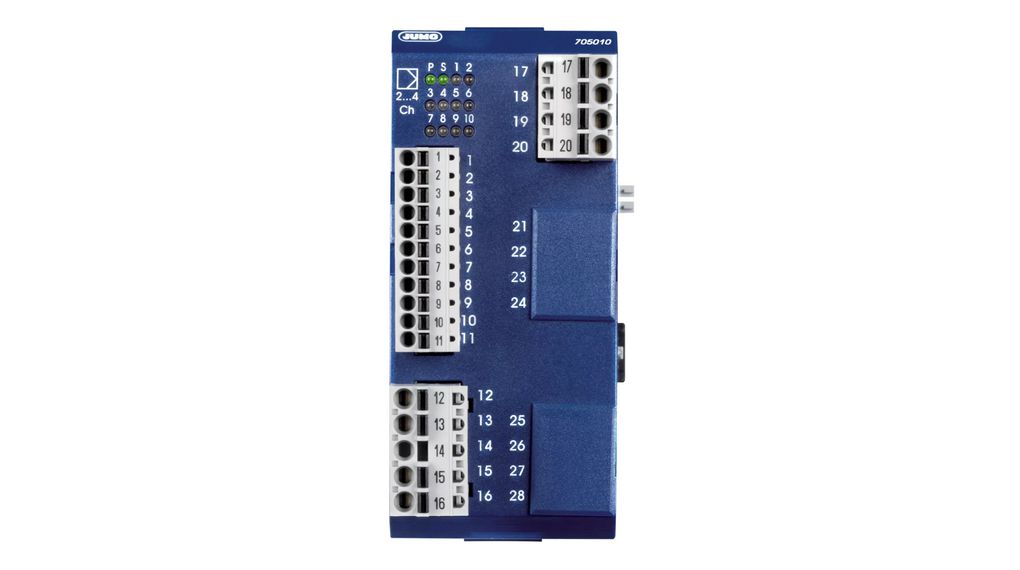

Jumo mTRON T Multichannel controller module (DC 24 V +25/-20 %, Part No.: 00566223)

Order code: 705010/18-000-36/000,000,000

Basic type extension: 2 relays (N/O contact)

Version: With factory settings

Option slot 1: Not used

Option slot 2: Not used

Option slot 3: Not used

Voltage supply: DC 24 V +25/-20 %

DNV GL approval: Without approval

DIN approval: Without approval

Extra codes: Without extra code

The multichannel controller module supports up to four PID controller channels (cascadable). In the standard version, two high-quality universal analog inputs for thermocouples, RTD temperature probes, resistance transmitters, resistance/potentiometers, and standard signals are available. Two digital inputs (DC 0/24 V) and two digital outputs as a relay with N/O contact (AC 230 V / 3 A) or as a logic output (DC 0/15 V) are also available as part of the standard version. Due to the three option slots (option 1, 2, and 3), the module can be extended up to four universal analog inputs, eight digital inputs, three analog outputs, or eight digital outputs
