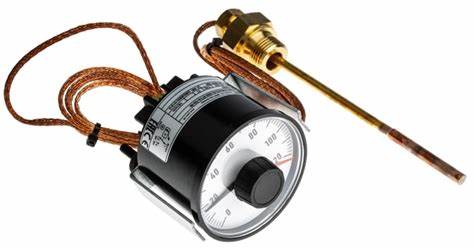

Jumo MICROSTAT-M Temperature controller (0 ~ +120 °C)

Order code: 608501/2060-818-21-2000-750-8-000-96-00-100-20/000

Image may be a representation. See datasheet for product details.

Basic type: Design type: 20; case size: ø 060 mm

Display range (AB): 0 to +120

Capillary type (FL): FL21 Cu capillary, Ø 1.0 mm (up to AB end value +300°C)

Capillary length: 2000 mm

Process connection (PC): TF 01; Temperature probe with stepped support tube

Diameter of process connection (PC): Ø 08 mm

Thread type of process connection (PC): Without thread (for TF 01 and TF 11)

Material, probe / support tube: Copper (Cu) / brass (CuZn) (up to 200 °C)

Material of process connection (PC): Without (only TF 01 and TF 11)

Insertion length, process connection (PC) (dimension "EL" or "S"): 100 mm

Switching output (SA): SA 20 One contact

Extra codes (TZ): Without extra code

The MICROSTAT-M is a universally-applicable electromechanical temperature controller with actual value display. The device comes in a plastic housing with a liquid or gas-filled measuring system.
