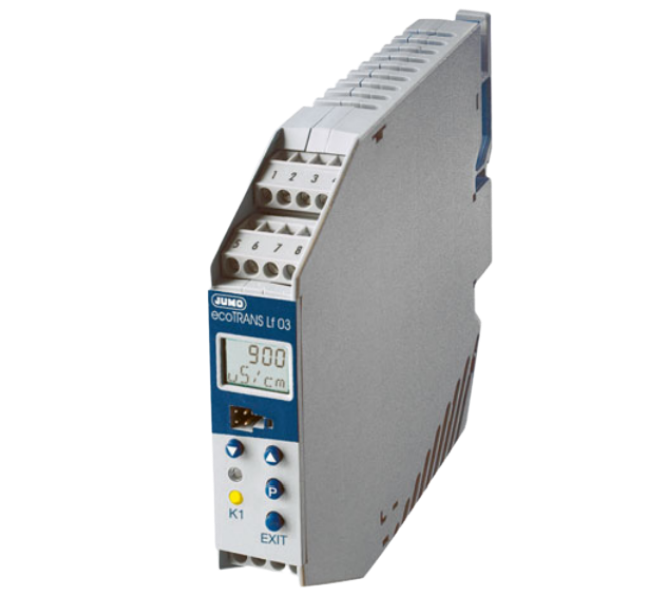

Jumo ecoTRANS Lf 03 Transmitter and switching device for conductivity (0 ~ 200 mS, -10 ~ +250°C, Part No.: 00441865)

Order code: 202732/888-888-101/000

Measuring range:

Conductivity: 0 to 200 mS

Temperature: -10 to +250°C

Output I (conductivity / resistivity): analog signal output, freely programmable

Output II (temperature): analog signal output, freely programmable

Output III (switching): 1 x relay, changeover contact

Extra codes: none

The product measures the conductivity or the resistance of liquids in conjunction with conductive conductivity measuring cells. Typical application areas are plants for fresh water monitoring and water treatment, reverse osmosis plants, etc.

Datasheet
