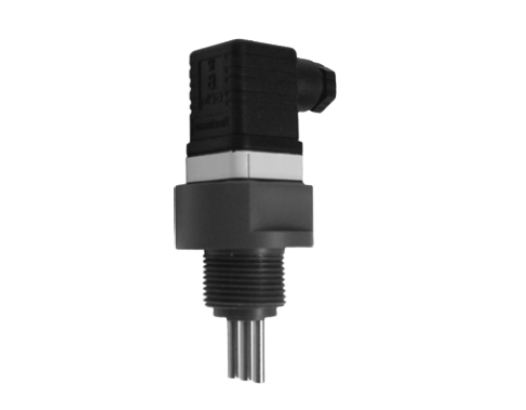

Jumo ecoLine CR-PVC Conductive 2-Electrode Conductivity Sensor (0– 1.0 mS/cm (K=0.1), Part No.: 00303793)

Order code: 202923/0010-1003-105-37-86-26/000

Cell constant: K = 0.1 (measuring range 0 – 1.0 mS/cm)

Temperature sensor: Pt100

Process connection: screw-in thread G 3/4“A

Electrical connection: device connector according to DIN EN 175301-803 (Hirschmann connector)

Body material: PVC

Cell material: stainless steel 1.4571

Conductivity sensors of this type series are used, among other areas, in general water technology, cooling and air conditioning system technology, drinking water and swimming pool water sectors, and in industrial rinsing and process water circuits.

Datasheet
