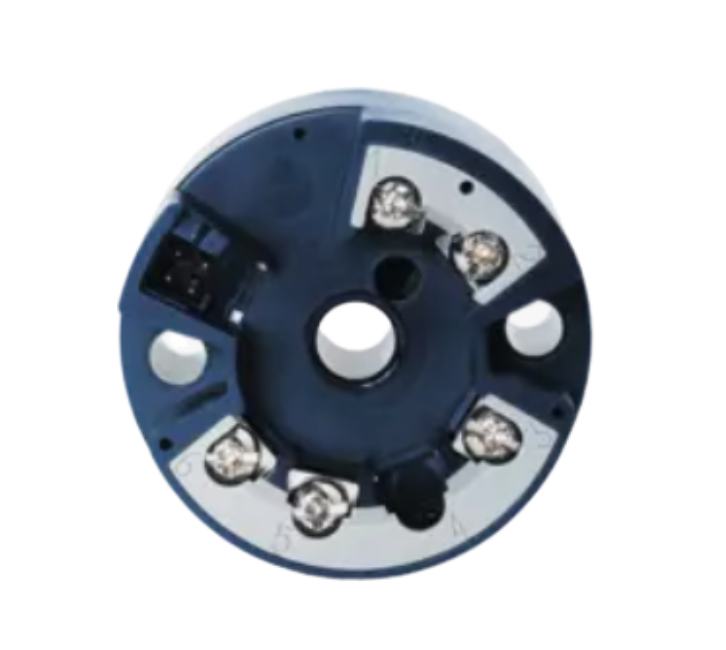

Jumo dTRANS T03 B Two-wire or three-wire transmitter (-200 ~ +850°C, 2 wires, form B)

Order code: 707031/880-001-005/243

analog 2-wire transmitter for installation in terminal head Form B

Range limits: -200 to +850°C

Basic type extensions: adjustable

Input: Pt100 in 3-wire circuit

Output: 4 to 20mA

Extra codes: transmitter in surface-mounting case

The transmitters intended for industrial applications acquire the temperature with two-wire or three-wire connection. The continuous analog signal path allows for extremely quick output reaction times in the event of a temperature change (analog permanent measurement instead of digital sampling rate).
Datasheet
