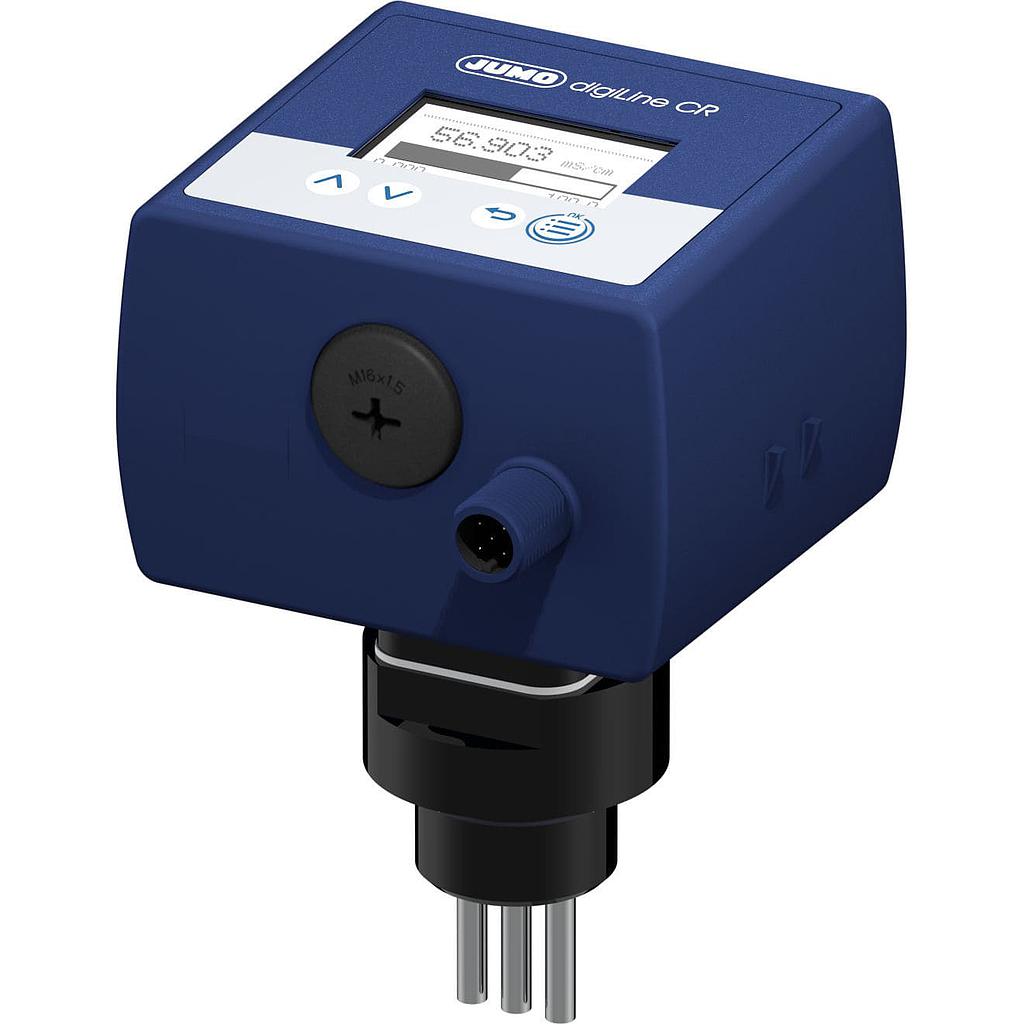

Jumo digiLine CR HT20 Head transmitter with conductive two-electrode conductivity sensor type PVC (-50 ~ +250°C)

Order code: 202764/10-10-8-01-0010-1003-687-86-84

Basic type extension: Digital operation, plastic housing (JUMO digiLine)

Display: With display

Version: Standard with default settings

Language: German

Cell constant: 1.0 1/cm

Measuring insert: 1× Pt100 in two-wire circuit

Process connection: Stepped collar PVC Ø 32 / DN 25

Process connection material: Plastic (PVC)

Electrode material: Graphite

JUMO digiLine CR now enables conductive conductivity sensors to be connected to the intelligent, bus-compatible JUMO digiLine system. System integration can now also take place via an IO-Link interface. The sensor is firmly connected to the head transmitter.

Datasheet
