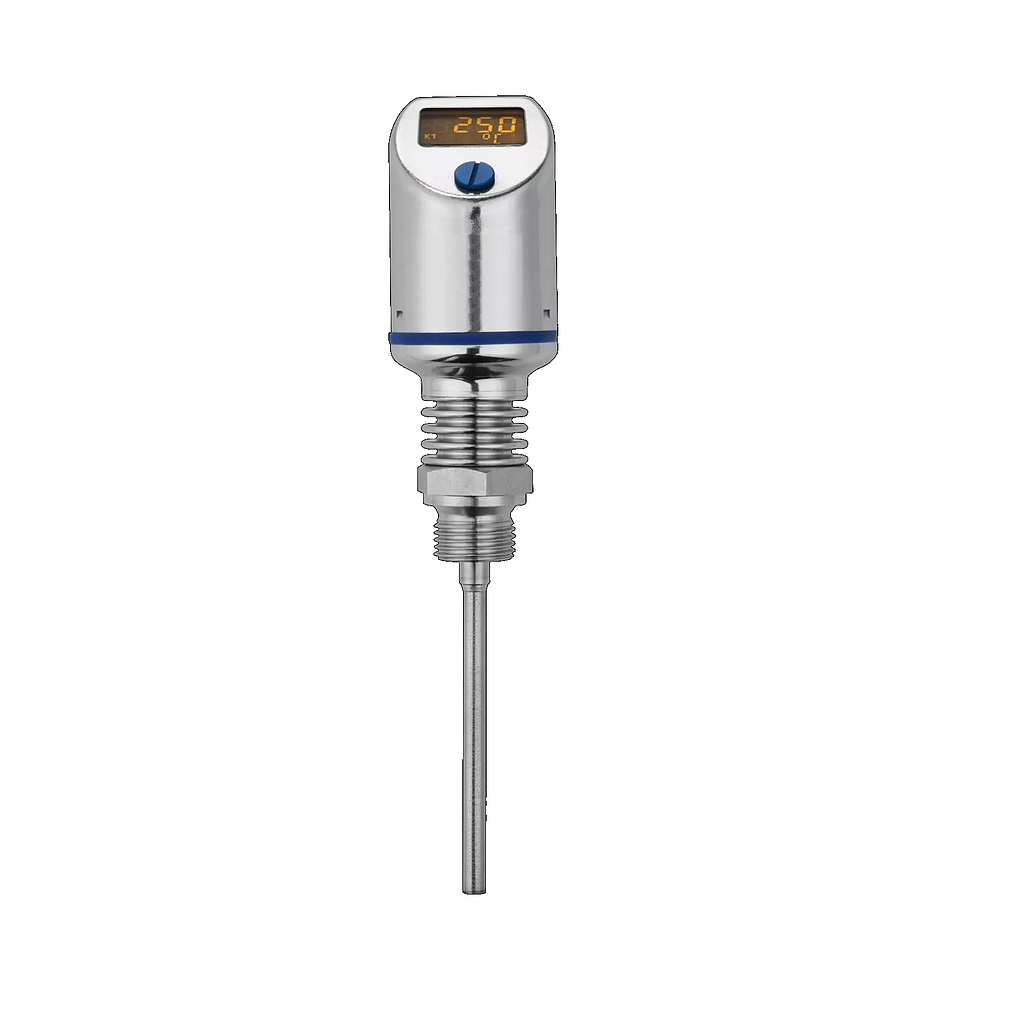

Jumo DELOS T Electronic temperature switch (-50~+150°C; EL: 100m; Part no: 00550991)

Order code: 902940/10-8-370-1013-2-475-6-100-104/000

Parts coming into contact with the medium are electrolytically polished, surface roughness ≤ 0.8 μm

Version: Standard with default settings

Operating temperature in °C: -50 to +150 °C

Measuring insert: 1 × Pt1000 in four-wire circuit

Tolerance class according to DIN EN 60751: Class A (standard)

Output: 1× PNP switching output and 1× analog output, 4 to 20 mA, user configurable

Protection tube diameter D in mm: Ø 6 mm

Insertion length EL in mm (50 to 1000 mm): 100 mm

Process connection PA: Screw connection G 1/2 (stainless steel 316 Ti)

Extra codes: None
