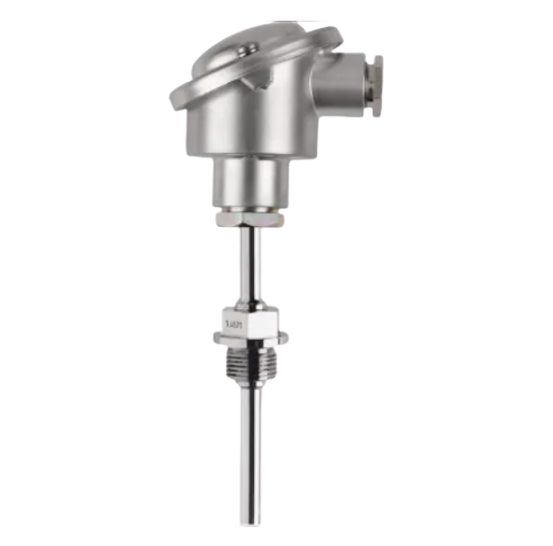

Jumo 902020 Screw-in RTD temperature probe (-50~+400 °C, Part No.: 00055565)

Order code: 902020/10-402-2003-1-9-160-104/000

Image may be a representation. See datasheet for product details.

Screw-in RTD temperature probe with extension tube, continuous protection tube

Operating temperature (additional versions upon request): -50 to +400 °C (standard)

Measuring insert (additional versions upon request): 2× Pt100 in two-wire circuit

Tolerance class according to DIN EN 60751:2009 / IEC 60751:2008 (additional versions upon request): Class B (standard) (-50 to +500 °C)

Protection tube diameter D: Ø 9 mm

Insertion length EL in mm (EL up to 1000 mm): 160 mm

Process connection (additional versions upon request): Screw connection G 1/2

Extra codes: None

Screw-in RTD temperature probes are predominantly used for measuring temperatures in liquids and gases.

Datasheet
