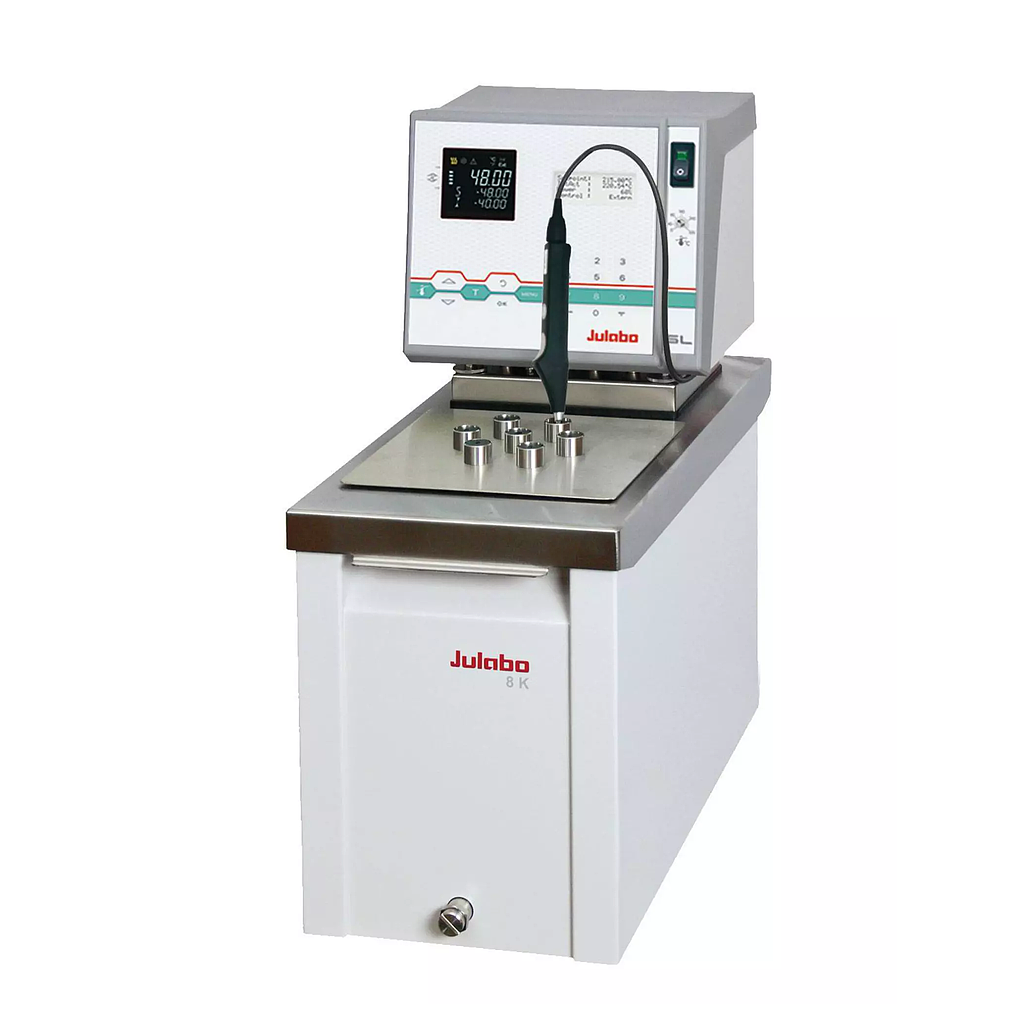

Julabo SL-8K HighTech SL Calibration Bath (+50 ... +300 °C; 8L)

Dimensions and volumes:

Dimensions (W × L × H): 8.7 x 18.1 x 18.5 in.

Filling volume: 8 l

Usable immersion depth: 6.7 in.

Weight: 35.3 lbs

Temperature values:

Working temperature range: +50 ... +300 °C

Temperature stability: ±0.005 °C

Temperature display resolution: 0.01 °C

Ambient temperature 1: +5 ... +40 °C

Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)

Heating capacity: 3 kW

Pump capacity flow pressure: 22 ... 26 l/min

Circulation capacity pressure: 5.8 ... 10.2 psi

Maximum suction: 2.9 ... 5.8 psi

Viscosity max.: 70 cSt

Power consumption: 14 A

Bath:

Bath tank: Stainless steel

Bath cover: integrated

Usable bath opening (W x L / D): 4.7 in.

Cooling:

Cooling coil: integrated

Electronics:

Interfaces: Profibus optional

External pt100 sensor connection: integrated

Integrated programmer: 6x60 steps

Temperature control: ICC

Absolute temperature calibration: 3 Point Calibration

Temperature display: VFD

Temperature setting: Keypad
