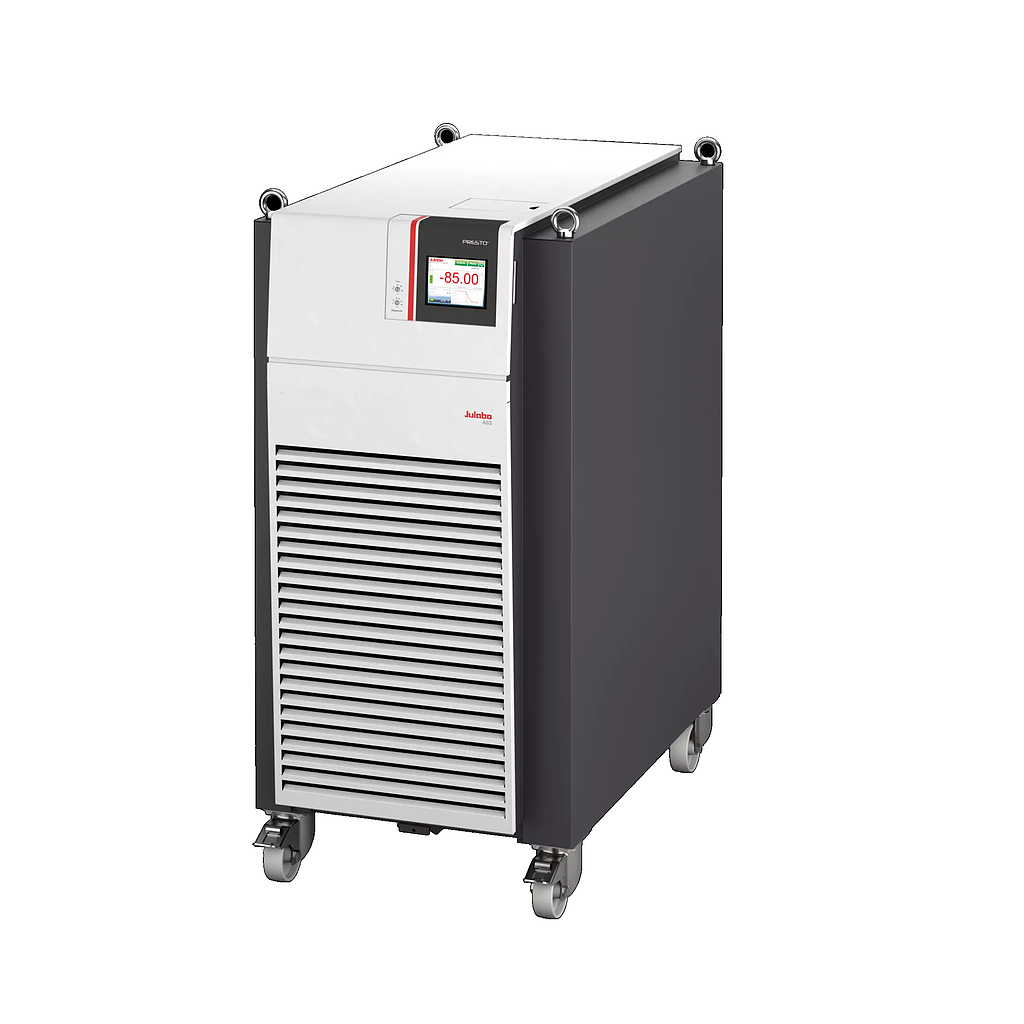

Julabo PRESTO A85t Highly Dynamic Temperature Control System (-85.. +250 °C)

Dimensions and volumes:

Dimensions (W × L × H): 24 x 42.5 x 49.2 in.

Internal usable expansion volume: 7 l

Minimal process volume: 9.5 l

Active heat exchanger volume: 5 l

Weight: 804.7 lbs

Pump connections: M30x1.5 male

Temperature values:

Working temperature range: -85 ... +250 °C

Temperature stability: ±0.05 ... ±0.1 °C

Setting the resolution of the temperature display: 0.01 °C

Temperature display resolution: 0.01 °C

Ambient temperature: +5 ... +40 °C

Performance values: 230V/3PPE/50Hz (Plug 63A CEE)

Heating capacity: 15 kW

Cooling capacity: 2.5 kW

Refrigerant stage 1

Refrigerant: R507

Global Warming Potential: 3985

Filling weight: 1600 g

Carbon dioxide equivalent: 6.376 t

Refrigerant stage 2

Refrigerant: R23

Global Warming Potential: 14800

Filling weight: 680 g

Carbon dioxide equivalent: 10.064 t

Pump capacity flow pressure: 0 ... 80 l/min

Circulation capacity pressure: 1.5 ... 43.5 psi

Viscosity max.: 50 cSt

Power consumption: 52A

Cooling:

Cooling of compressor: 2-stage Air

Electronics:

Interfaces: Alarm output / Ethernet / Modbus / Profibus optional / REG/EPROG optional / RS232 / RS485 optional / SD memory card / Standby-Input optional / USB

External pt100 sensor connection: integrated

2nd external Pt100 sensor connection: accessory

Integrated programmer: 8x60 steps

Temperature control: ICC

Absolute temperature calibration: 3 Point Calibration

Temperature display: 5.7" TFT Touchscreen

Temperature setting: Touchscreen
