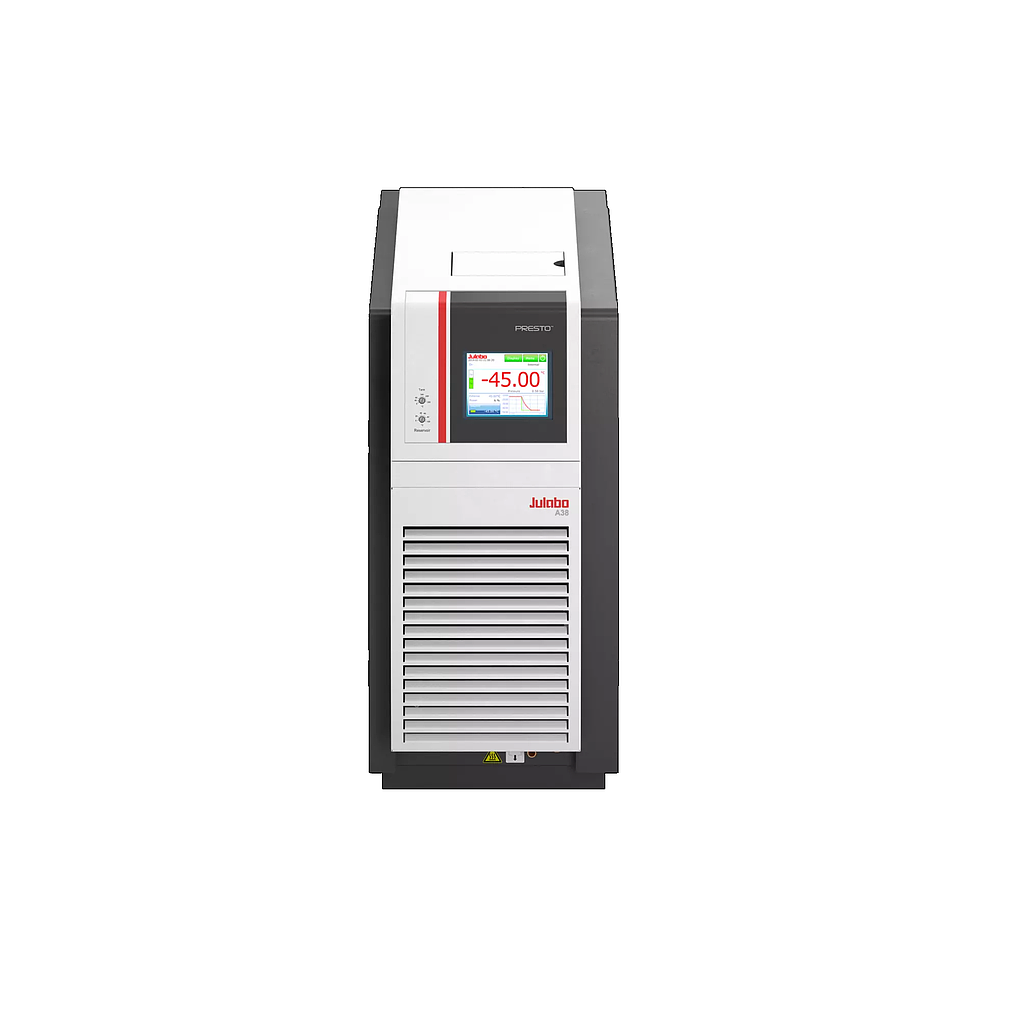

Julabo PRESTO A38 Highly Dynamic Temperature Control System (-45 ... +250 °C)

Dimensions and volumes:

Dimensions (W × L × H): 13x 29.5x 26.4 in.

Internal usable expansion volume: 2.7 l

Minimal process volume: 3.5 l

Active heat exchanger volume: 1.7 l

Weight: 176.4 lbs

Pump connections: M24x1.5 male

Temperature values:

Working temperature range: -45 ... +250 °C

Temperature stability: ±0.01 ... ±0.05 °C

Setting the resolution of the temperature display: 0.01 °C

Temperature display resolution: 0.01 °C

Ambient temperature: +5 ... +40 °C

Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)

Heating capacity: 2.7 kW

Cooling capacity: 0.91 kW

Refrigerant: R1270

Global Warming Potential: 2

Filling weight: 99 g

Carbon dioxide equivalent: 0.000198 t

Pump capacity flow pressure: 0 ... 50 l/min

Circulation capacity pressure: 1.5 ... 23.2 psi

Viscosity max.: 50 cSt

Power consumption: 16 A

Cooling:

Cooling of compressor: 1-stage Air

Electronics:

Interfaces: Alarm output / Ethernet / Modbus / Profibus optional / REG/EPROG optional / RS232 / RS485 optional / SD memory card / Standby-Input optional / USB

External pt100 sensor connection: integrated

2nd external Pt100 sensor connection: accessory

Integrated programmer: 8x60 steps

Temperature control: ICC

Absolute temperature calibration: 3 Point Calibration

Temperature display: 5.7" TFT Touchscreen

Temperature setting: Touchscreen
