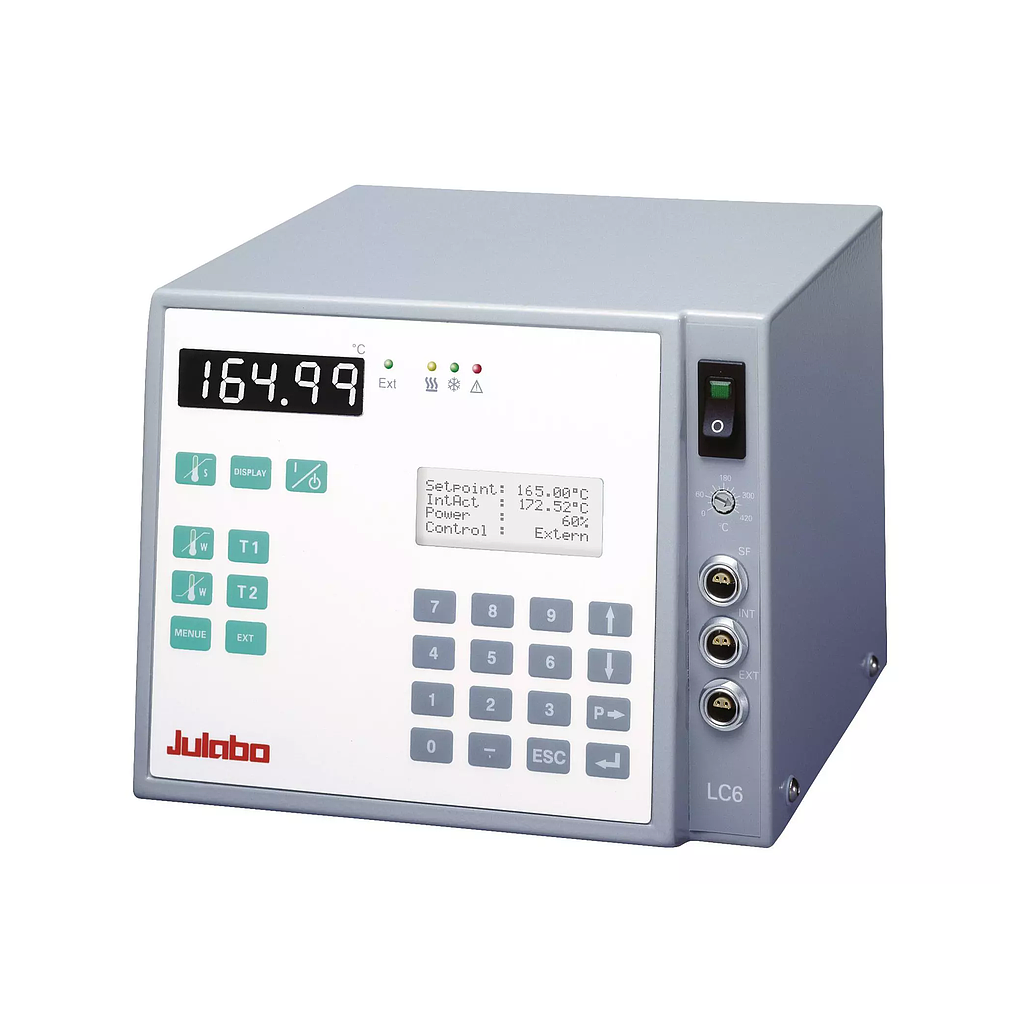

Julabo LC6 Laboratory Temperature Controller (-100 ... +400 °C)

Dimensions and volumes:

Dimensions (W × L × H): 8.3 x 7.1 x 7.1 in.

Weight: 8.8 lbs

Temperature values:

Working temperature range: -100 ... +400 °C

Temperature stability: ±0.03 °C

Temperature display resolution: 0.01 °C

Ambient temperature: +5 ... +40 °C

Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)

Heating capacity: 3 kW

Power consumption: 14 A

Electronics:

Interfaces: Alarm output / Profibus optional / REG/EPROG / RS232 / RS485 / Standby-Input

External pt100 sensor connection: integrated

2nd external Pt100 sensor connection: integrated

Integrated programmer: 6x60 steps

Temperature control: ICC

Absolute temperature calibration: 1 Point Calibration

Temperature display: LCD

Temperature setting: Keypad
