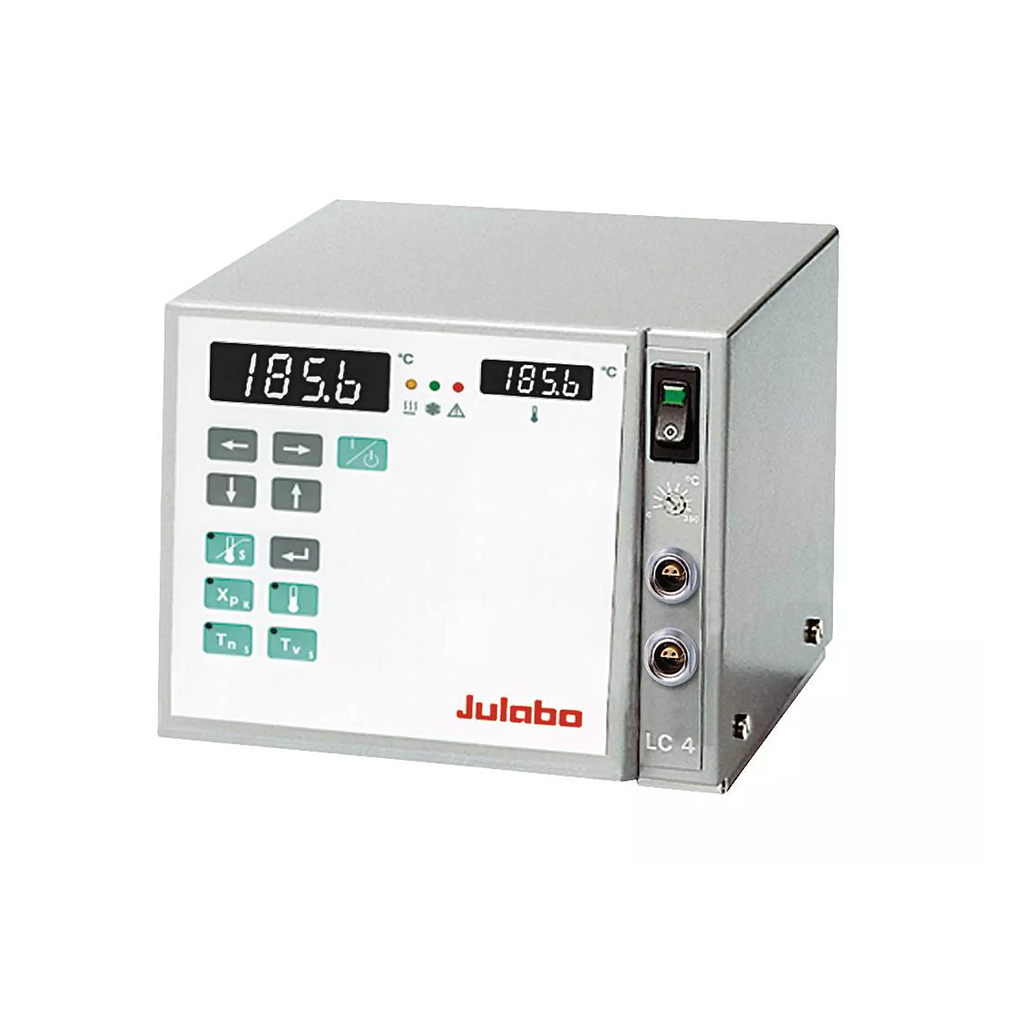

Julabo LC4 Laboratory Temperature Controller (-50 ... +350 °C)

Dimensions and volumes:

Dimensions (W × L × H): 6.7 x 6.7 x 6.3 in.

Weight: 6.6 lbs

Temperature values:

Working temperature range: -50 ... +350 °C

Temperature stability: ±0.05 °C

Temperature display resolution: 0.01 °C

Ambient temperature: +5 ... +40 °C

Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)

Heating capacity: 2 kW

Power consumption: 10A

Electronics:

Interfaces: Alarm output / Profibus optional / RS232

External pt100 sensor connection: integrated

2nd external Pt100 sensor connection: integrated

Temperature control: PID1

Absolute temperature calibration: 1 Point Calibration

Temperature display: 2x LED

Temperature setting: Keypad
