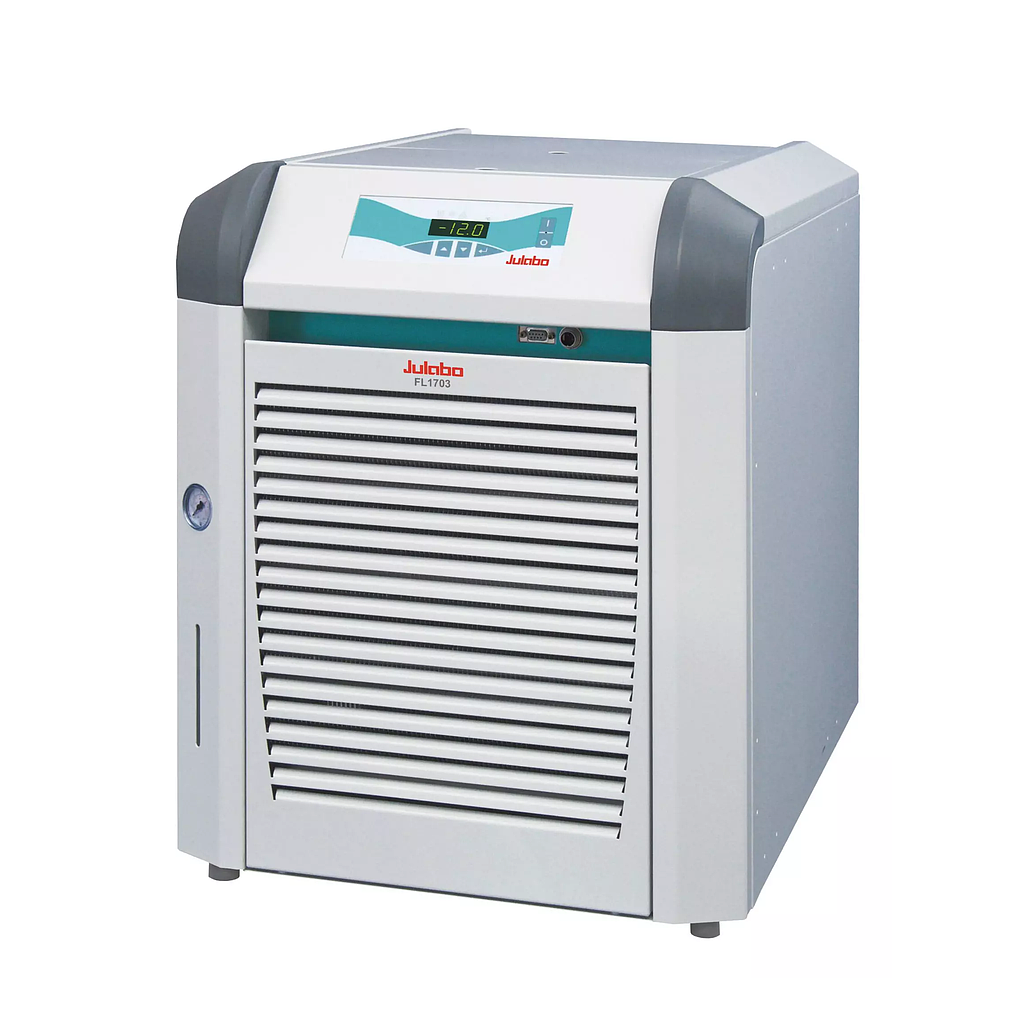

Julabo FL1703 Recirculating Cooler (-20 ... +40 °C; 17L)

Dimensions and volumes:

Dimensions (W × L × H): 19.7 x 29.9 x 25.2 in.

Filling volume: 12 ... 17 l

Weight: 200.6 lbs

Pump connections: G¾" male

Barbed fittings inner diameter: ¾"

Temperature values:

Working temperature range: -20 ... +40 °C

Temperature stability: ±0.5 °C

Setting the resolution of the temperature display: 0.1 °C

Temperature display resolution: 0.1 °C

Ambient temperature: +5 ... +40 °C

Return flow temperature max.: 80 °C

Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)

Cooling capacity: 1.7 Kw

Refrigerant: R452A

Global Warming Potential: 2140

Filling weight: 690 g

Carbon dioxide equivalent: 1.4766 t

Pump capacity flow pressure: 40 l/min

Circulation capacity pressure: 7.3 ... 43.5 psi

Power consumption: 12A

Bath:

Bath tank: Stainless steel

Cooling:

Cooling of compressor: 1-stage Air

Electronics:

Interfaces: RS232

Temperature control: PID1

Temperature display: LED

Temperature setting: Keypad
