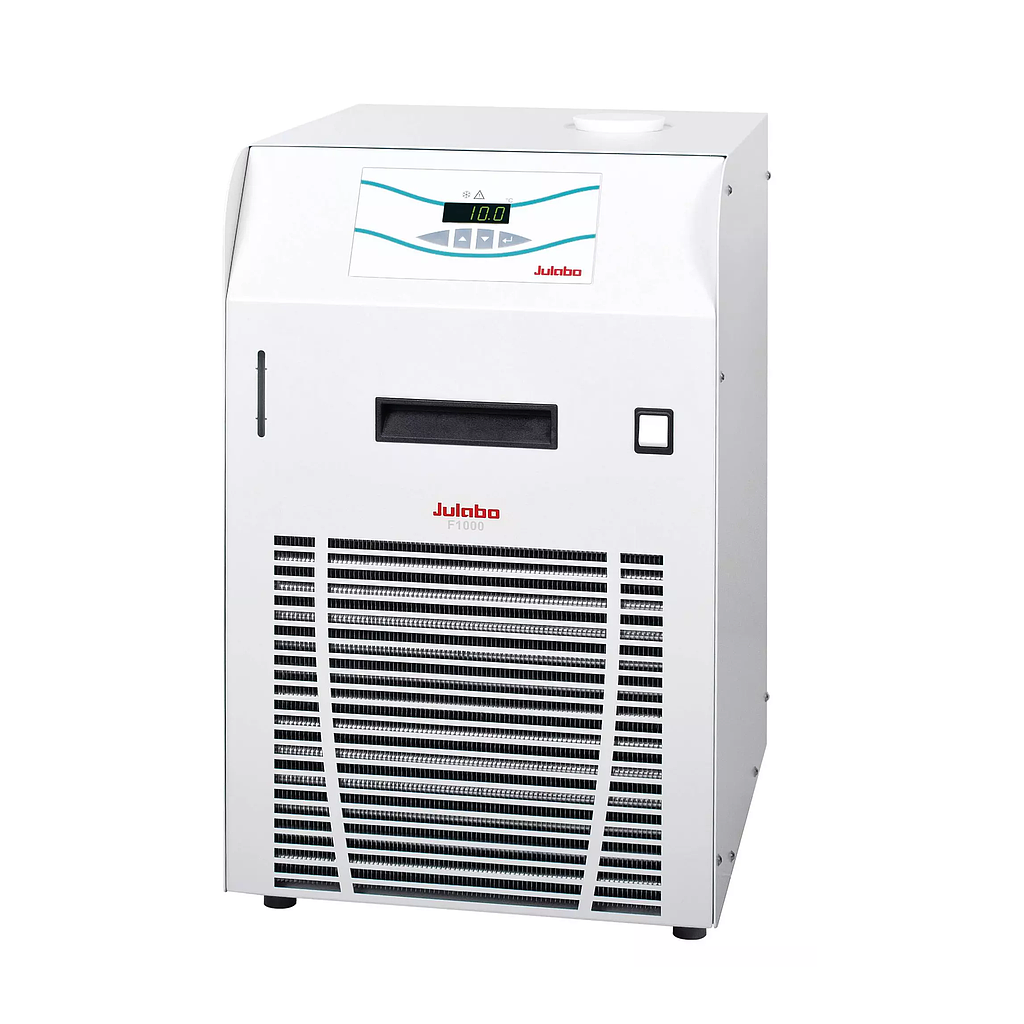

Julabo F1000 Compact Recirculating Cooler (0 ... +40 °C; 9.5L)

Dimensions and volumes:

Dimensions (W × L × H): 14.8 x 19.3 x 25.2 in.

Filling volume: 7 ... 9.5 l

Weight: 99.2 lbs

Pump connections: M16x1 male

Barbed fittings inner diameter: 8/12 mm

Temperature values:

Working temperature range: 0 ... +40 °C

Temperature stability: ±0.5 °C

Setting the resolution of the temperature display: 0.1 °C

Temperature display resolution: 0.1 °C

Ambient temperature: +5 ... +40 °C

Return flow temperature max.: +80 °C

Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)

Cooling capacity: 1 Kw

Refrigerant: R134a

Global Warming Potential: 1430

Filling weight: 295 g

Carbon dioxide equivalent: 0.42185 t

Pump capacity flow pressure: 23 l/min

Circulation capacity pressure: 14.5 psi

Power consumption: 5A

Bath:

Bath tank: Stainless steel

Cooling:

Cooling of compressor: 1-stage Air

Electronics:

Temperature control: PID1

Temperature display: LED

Temperature setting: Keypad
