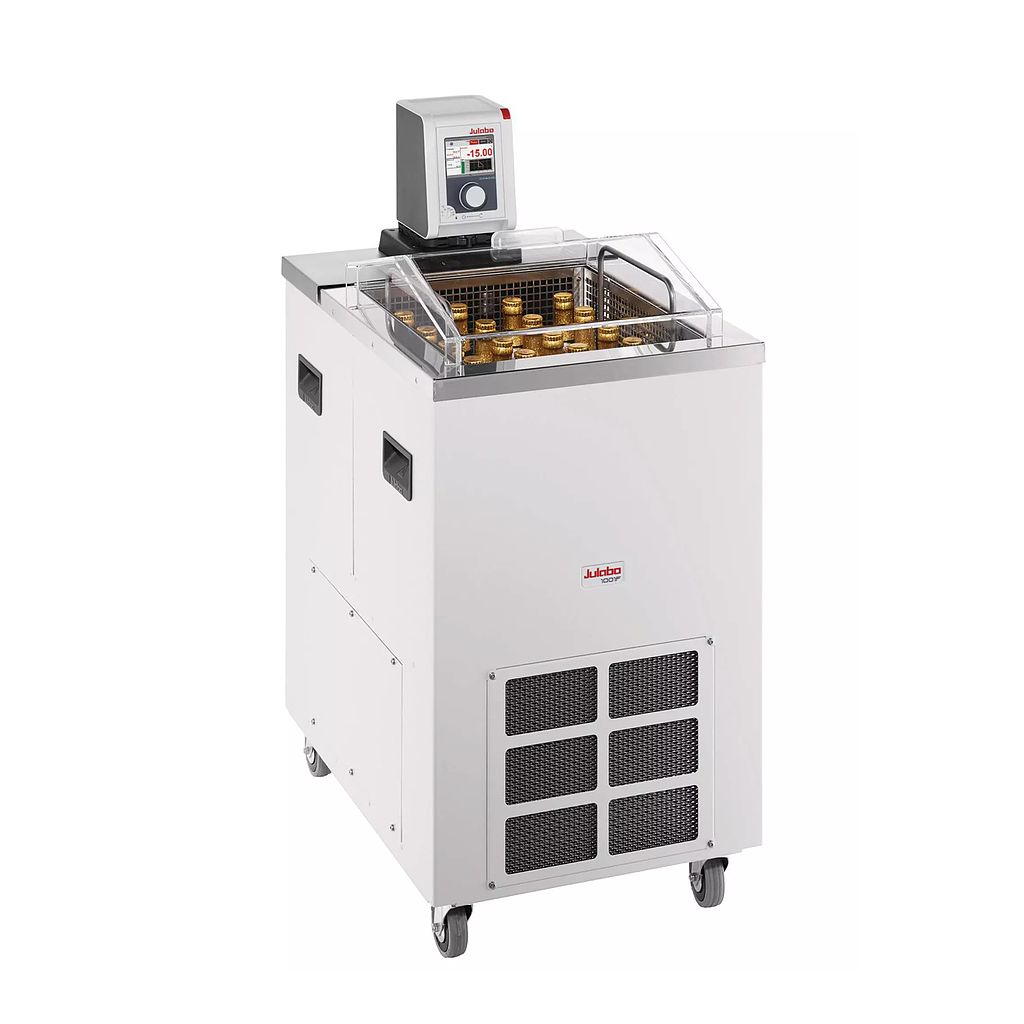

Julabo DYNEO DD-1001F-BF Heating circulating bath (-38 ... +100 °C; 56L)

Dimensions and volumes:

Dimensions (W × L × H): 17.7 x 25.2 x 37.4 in.

Filling volume: 48 ... 56 l

Weight: 162.5 lbs

Pump connections: M16x1 male

Barbed fittings inner diameter: 8/12 mm

Temperature values:

Working temperature range: -38 ... +100 °C

Temperature stability: ±0.01 °C

Setting the resolution of the temperature display: 0.01 °C

Temperature display resolution: 0.01 °C

Ambient temperature: +5 ... +40 °C

Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)

Heating capacity: 2 kW

Cooling capacity: 1 kW

Refrigerant: R449A

Global Warming Potential: 1397

Filling weight: 170 g

Carbon dioxide equivalent: 0.23749 t

Pump capacity flow pressure: 8 ... 27 l/min

Circulation capacity pressure: 1.5 ... 10.2 psi

Viscosity max.: 50 cSt

Power consumption: 16 A

Bath:

Bath tank: Stainless steel

Bath cover: integrated

Usable bath opening (W x L / D): 13.8 x 16.1 / 11.8 in.

Cooling:

Cooling of compressor: 1-stage Air

Electronics:

Interfaces: Alarm output optional / REG/EPROG optional / RS232 optional / Standby-Input optional / USB

External pt100 sensor connection: integrated

Integrated programmer: 8x60 steps

Temperature control: PID3

Absolute temperature calibration: 3 Point Calibration

Temperature display: 3.5" TFT Display

Temperature setting: Shaft Encoder

Electronic Timer (h:min): 00:00 ... 99:59
