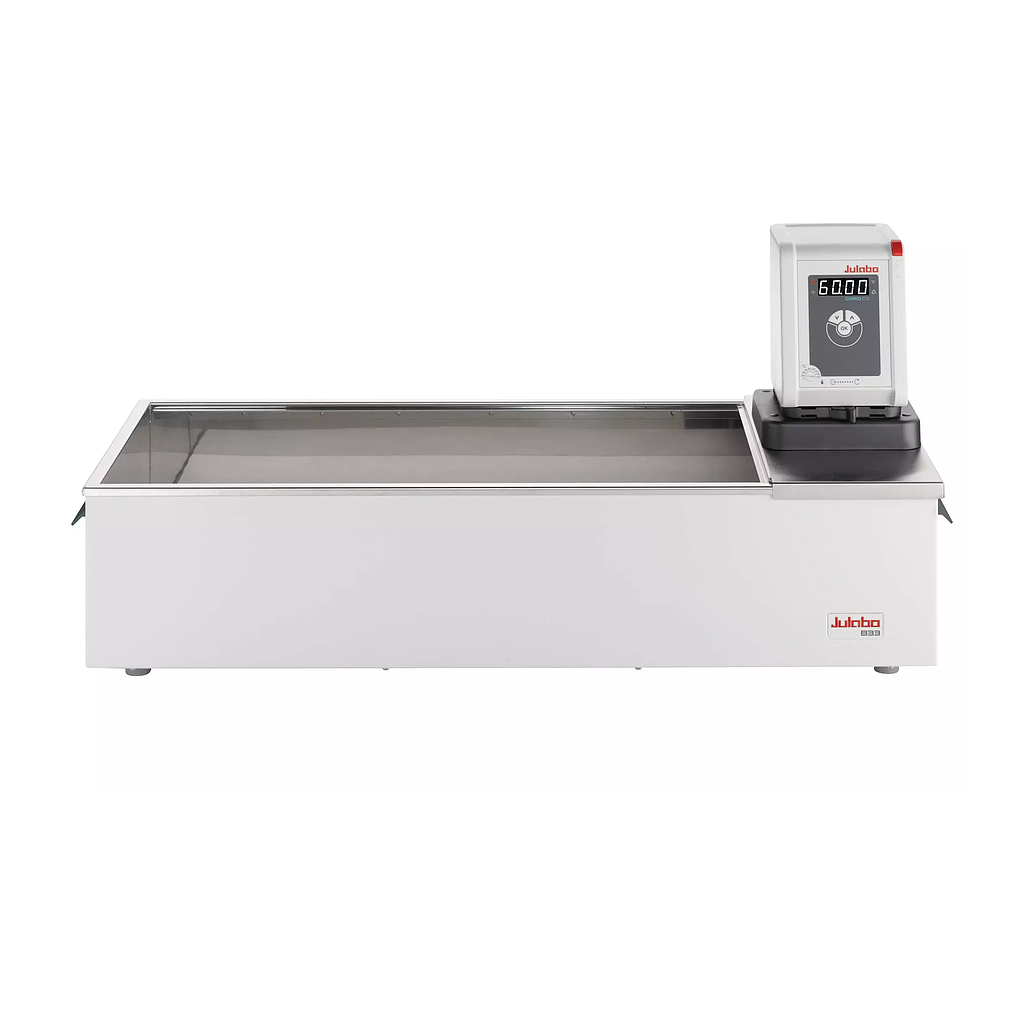

Julabo CORIO CD-B33 Open heating bath circulator (+20~+150°C, 39L)

Dimensions and volumes:

Dimensions (W × L × H): 35.8 x 14.2 x 16.9 in.

Filling volume: 26 ... 39 l

Weight: 46.3 lbs

Pump connections: M16x1 male

Barbed fittings inner diameter: 8/12 mm

Temperature values:

Working temperature range: +20 ... +150 °C

Temperature stability: ±0.03 °C

Setting the resolution of the temperature display: 0.1 °C

Temperature display resolution: 0.01 ... 0.1 °C

Ambient temperature 1: +5 ... +40 °C

Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)

Heating capacity: 2 kW

Pump capacity flow pressure: 15 l/min

Circulation capacity pressure: 5.1 psi

Viscosity max.: 50 cSt

Power consumption: 10 A

Bath:

Bath tank: Stainless steel

Bath cover: accessory

Usable bath opening (W x L / D): 26 x 12.6 / 5.9 in.

Cooling

Cooling coil: accessory

Other

Classification: Classification III (FL)

IP Code: IP 21

Pump function: Pressure Pump

Pump type: Immersion Pump

Electronics

Interfaces: USB

Temperature control: PID1

Absolute temperature calibration: 1 Point Calibration

Temperature display: LED

Temperature setting: Keypad
