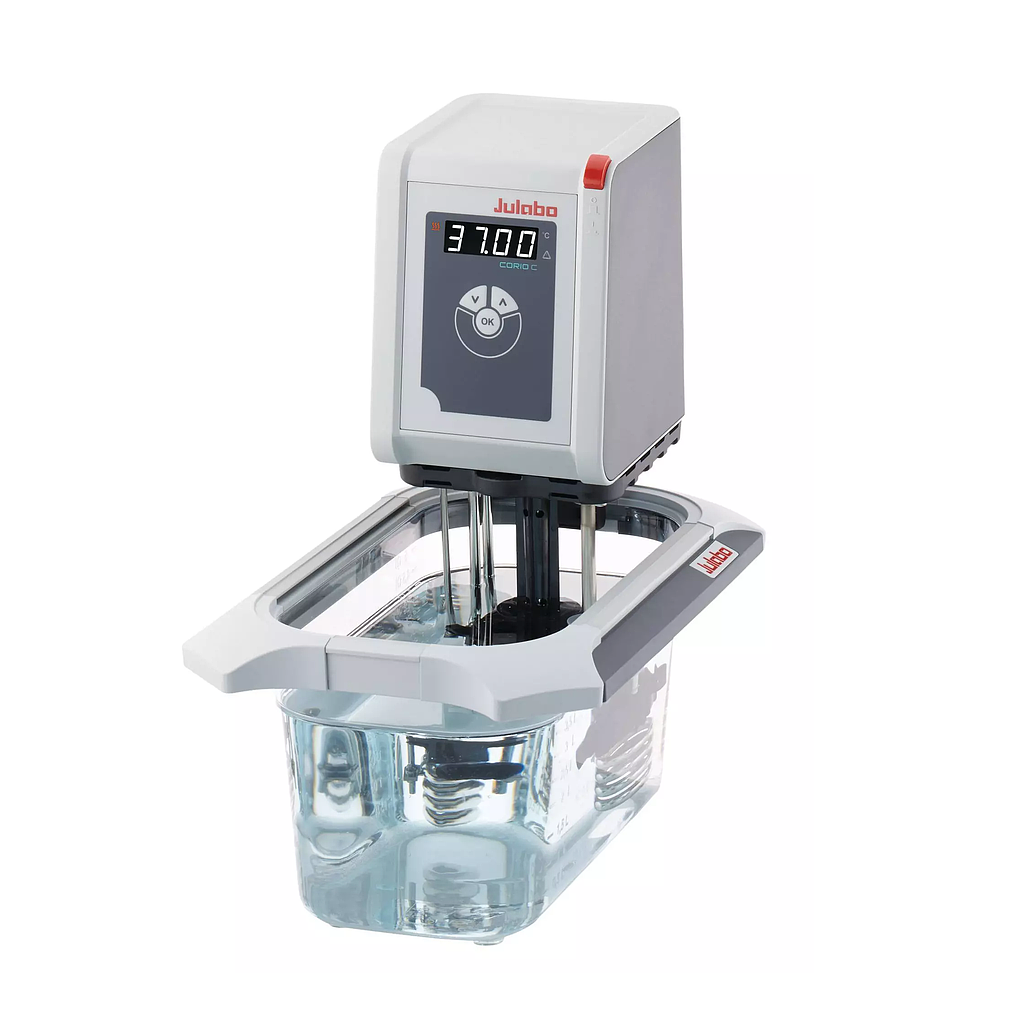

Julabo CORIO C-BT5 Open heating bath circulator (+20~+100°C, 5L)

Dimensions and volumes:

Dimensions (W × L × H): 9.1 x 15 x 15 in.

Filling volume: 3.5 ... 5 l

Weight: 10.6 lbs

Temperature values:

Working temperature range: +20 ... +100 °C

Temperature stability: ±0.03 °C

Setting the resolution of the temperature display: 0.1 °C

Temperature display resolution: 0.01 ... 0.1 °C

Ambient temperature: +5 ... +40 °C

Performance values: 230V/50Hz (Schuko Plug - CEE 7/4 Plug Type F)

Heating capacity: 2 kW

Viscosity max.: 1 cSt

Circulation capacity flow rate: 6 l/min

Circulation capacity pressure: 1.5 psi

Power consumption: 9A

Bath:

Bath tank: Polycarbonat

Usable bath opening (W x L / D): 5.9 x 5.9 / 5.9 in.

Other:

Classification: Classification I (NFL)

IP Code: IP 21

Pump type: Immersion Pump

Electronics:

Temperature control: PID1

Absolute temperature calibration: 1 Point Calibration

Temperature display: LED

Temperature setting: Keypad
