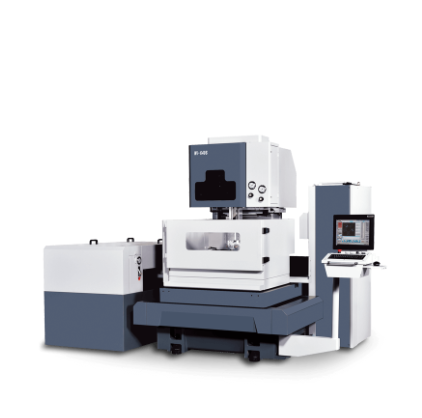

JSEDM Wi-640S Wire cut EDM (Ø 0.1~0.3 mm)

Max. Workpiece Size L x W x H: 1000 x 720 x 345 mm

Work Table Size: 870 x 680 mm

Max. Working Load: 1000 kgs

X / Y / Z Axis Travel: 600 / 450 / 350 mm

U / V Axis Travel: 120 / 120 mm

Wire Diameter Range: Ø 0.1~0.3 mm

Max. Taper Angle /Workpiece Thickness: ± 22.5 °/ 130mm

Max. Wire Load: 10 kgs

Water Tank Capacity: 940 L

Net Weight: 3500 kgs

Machine Layout W x D x H: 3550 x 2650 x 2300 mm

Standard Accessories

Automatic Vertical Alignment Jig: 1 Set

Power Feed Contact: 2 Pcs

Filter: 2 Pcs

Clamping Tool: 1 Set

Wire Guide ( Ø 0.25 mm): 1 Set

Brass Wire ( Ø 0.25 mm / 5kg): 1 Roll

Ionic Exchange Resin (5L / 10L)

Tool Box: 1 Set

X, Y axes linear scale are included in Wi-640S & Wi-1065SA

Wi-1065SA contains A.W.T System

Optional Accessories

Wire Guide ( Ø 0.1 ~ 0.2 mm)

22.5° Nozzle

3R/EROWA Clamping Tool

Parallel Bar

Water Chiller

Power Regulator

X, Y Axes Linear Scale

Auto Wire Threading System

Auto Wire Cutting System

CAD/CAM Software

PCD Professional Electric Circuit

6 Axes Or Above Control

Wire Speed Meter

Wire Tension Meter

Water Resistance Meter
