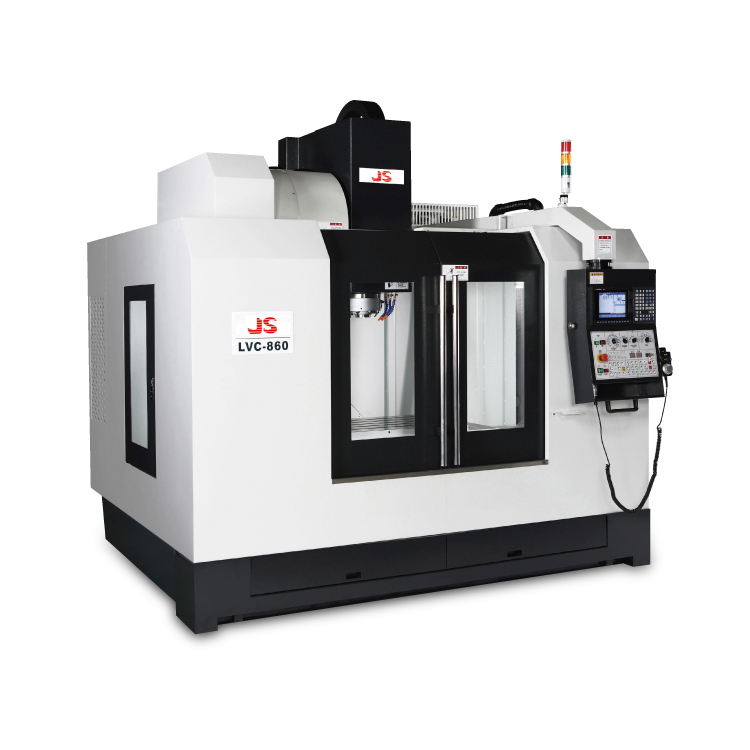

JSEDM LVC-1370 MVC Vertical Machine Center (10000 / 12000 / 15000 RPM)

X axis travel: 1300 mm

Y axis travel: 700 mm (/650mm)

Z axis travel: 700 mm

Spindle nose to table surface: 150-850 mm

Spindle center nose to column: 700 mm

Linear way - X axis: RGW45

Linear way - Y axis: RGW45

Linear way - Z axis: RGW45

Ball screw - X axis: R50XP12

Ball screw - Y axis: R50XP12

Ball screw - Z axis: R50XP12

Table work area: 1200 x 700 mm

Max. table load: 700 kg

Dimension of T-slot: CD100 x 18 x 7T

Bore diameter: BT40

Spindle taper: ISO40

Spindle motor: 15 HP (Mitsubishi or Fanuc)

Spindle diameter: Ø70 mm

Belt: 10000 RPM

Directly (OP): 10000 / 12000 / 15000 RPM

Rapid feed rate (X / Y / Z): 36 / 36 / 24

Motor (X / Y / Z): 3.5 / 3.5 / 3.5 KW

Max. tool length: 250

Max. tool weight: 6 kg / 13.2 lbs

Number of tools: 240 pcs

Tool exchanging time: 10 / 4 sec

Min / Max. air pressure: 4 kg / 6cm²

Coolant tank capacity: 300 L

Net weight: 8500 kg

Gross weight: 9000 kg

Floor space requirement (L x W x H): 300 x 219 x 246 cm

Packing size (L x W x H): 700 x 228 x 250 cm / 385 x 310 x 315 cm

Container: 40"HQ split into 2 pallets / 20"FR
